Livestock scale LSM series
platformlbwith LCD display

livestock scale
livestock scale
livestock scale
livestock scale
livestock scale
livestock scale
livestock scale
livestock scale
livestock scale
Add to favorites
Compare this product


Characteristics

Type
platform
Units of measurement
lb
Display
with LCD display
Communication
USB
Material
stainless steel
Protection level
weather-resistant
Applications
livestock
Configuration
mobile
Other characteristics
battery-powered
Weight range

15,000 lb, 20,000 lb
(6,803.9 kg, 9,071.8 kg)

Accuracy

5 lb
(2.268 kg)

Weighing plate length

156 in, 221 in

Weighing plate width

88 mm
(3.5 in)

Width

88 in

Depth

156 in, 221 in

Height

98 in

Description

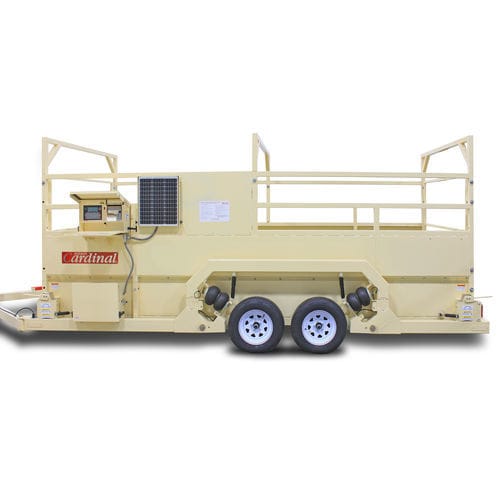

Cardinal Scale’s mobile Weight Wrangler group animal scales provide a self-contained NTEP legal-for-trade weighing system that can be used on any firm surface with up to a 5% grade. The livestock scales include an integral air pump to easily lift and lower the trailer’s air bag suspension. Models come in 18-ft-long tandem axle or 13-ft-long single axle sizes. The X-lug rubberized component deck and steel cattle pen enclosure with dual gates are all suspended at four points within a mobile base frame. The Weight Wrangler can weigh groups of cattle up to 15-20 head at a time (20,000 lb capacity). The scale includes a weight indicator, ticket printer, USB port, battery, self-adjusting electric brakes, and adjustable hitch height. Solar panels are optional. LSM series scales include high-quality X-lug flooring standard, which is the the livestock industry standard rubber floor for cattle handling. There is allocated open spacing between X-lug floor boards, which allows for easy wash out of scale after use. Other mobile and livestock scales on the market use a corrugated metal floor with a cover rubber mat, allowing livestock sewage to be trapped which leads to extensive rust damage. Ideal for the ranching industry, the durable steel cattle pens are UV-protected with baked-on industrial tan powder paint for long-lasting endurance in the elements. The LSM’s 15” trailer tires with semi-grade airbag suspension provide smooth towing and handling during transportation. The load cell junction box with additional condensation protection is located inside the battery box for easy access.
