Shear beam load cell TBCS series
beam typestrain gaugeweighing

shear beam load cell
shear beam load cell
shear beam load cell
shear beam load cell
shear beam load cell
shear beam load cell
shear beam load cell
Add to favorites
Compare this product


Characteristics

Type
shear beam
Form
beam type
Technology
strain gauge
Applications
weighing, for hopper, for silos
Other characteristics
stainless steel, steel construction, rugged
Rated load

Max.: 16,000 lb
(7,257.48 kg)

Min.: 3,000 lb
(1,360.78 kg)

Description

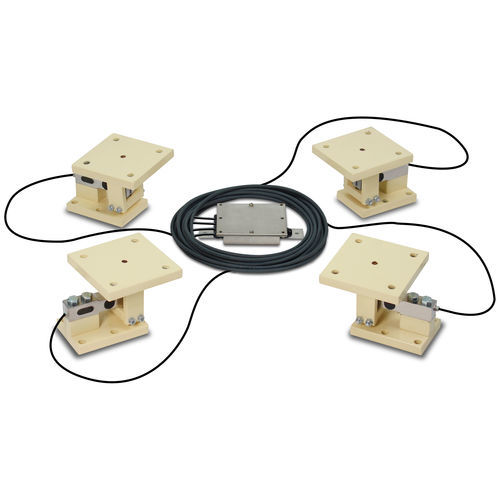

Cardinal Scale’s TBCS self-checking electronic load cell kits are versatile weighing modules for wide-ranging applications such as tanks, hoppers, silos, bins, and mixers. They are ideal for new installations or existing conversions. The TBCS series uses stainless steel TB load cells that are manufactured by Cardinal Scale and come with mild or stainless steel rugged, bolt-in-place stands. The kits include three or four stand assemblies, load cells, stainless steel junction box, and cables. Self-centering load buttons protect against offset loads to ensure reliable weighing. System capacities vary based on the number of cells from 3,000 lb to 16,000 lb, and they are easy to install with a low-profile design. The TCBS’s shear beam load cells are ideal for harsh conditions and unforgiving workloads. They are suited for indoor or outdoor applications and resilient to temperature, moisture, and vibration fluctuations. Features • 3 or 4 Cell Mounting Assemblies • Designed for Tank and Hopper Weighing • Durable Bolt-in-Place Stands • Easy to Install • Low-Profile Design • Mild or Stainless Steel Stands • Self-Checking Stands • Stainles Steel Junction Box with 30 ft Cable to Indicator • Stainless Steel Load Cells • System Capacities Range From 3000 lb to 16000 lb • Variety of Weight Indicators Also Available from Cardinal Scale • Versatile Load Cell Assemblies Utilized for Wide-Ranging Weighing Applications Specifications Load Cell Type: TB series shear beam model manufactured by Cardinal Scale. Load cell capacities ranging from 1,000 lb to 4,000 lb per cell. Stainless steel construction protects against caustic or corrosive environments. Load Cell Cable: 20 ft / 6 m long
