Shear beam load cell THBC series

beam typestrain gaugeweighing

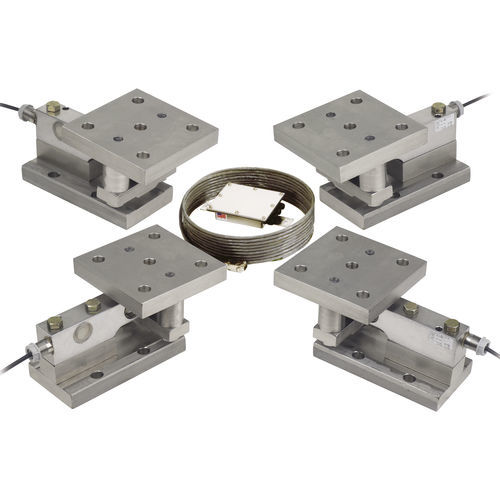

Cardinal Scale’s THBC electronic load cell kits are ideal for weighing tanks, hoppers, mixers, and conveyors. These self-checking load cell kits are available with mild steel or stainless steel stands, system capacities ranging from 7,500 lb (3,400 kg) up to 200,000 lb (90,700 kg), and stainless steel waterproof load cells. The THBC kits are ideal for medium-to-heavy capacity tank and hopper weighing, new or existing installations, and accommodate multi-legged tanks with up to 10 legs. They offer an easy-to-install, low-profile, bolt-down design. Each kit comes complete with 3 or 4 stainless steel load cells, self-checking load cell stands, load cell cable, and a stainless steel junction box. Special self-centering load buttons protect against offset side loads. The rugged, environmentally-sealed SB series shear beam load cells, also manufactured by Cardinal Scale, are NTEP, OIML, and VCAP certified. Features • Accommodates Multi-Legged Tanks with up to 10 Legs • Easy to Install • Ideal for New or Existing Installations • Mild or Stainless Steel Stands • NTEP-Certified Stainless Steel Waterproof Load Cells • Precision Engineering • Rugged Bolt-in-Place Design • Self-Checking Stands • Special Self-Centering Load Buttons Protect Against Offset Side Loads • Stainless Steel Load Cells • System Capacities Ranging from 7500 lb (3400 kg) up to 200000 lb (90700 kg) Specifications Model: THBC series Capacities: Standard model capacities ranging from 7,500 lb (3,400 kg) up to 80,000 lb (36,000 kg) Load Cell Type: Stainless steel SB series shear beam load cells manufactured by Cardinal Scale Load Cell Cable: 20 ft / 6 m Stand Type: Self-checking, bolt-down design
