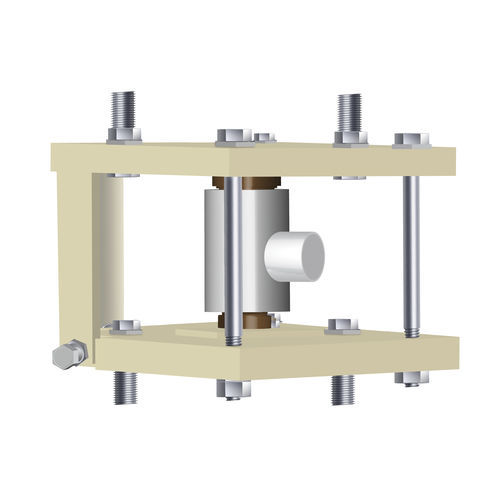

High-capacity load cell CCL series
compressioncanisterstrain gauge

high-capacity load cell
high-capacity load cell
Add to favorites
Compare this product


Characteristics

Type
compression
Form
canister
Technology
strain gauge
Applications
weighing, for hopper
Other characteristics
stainless steel, compact, high-capacity
Rated load

Max.: 800,000 lb
(362,873.9 kg)

Min.: 150,000 lb
(68,038.86 kg)

Description

Whether it be tank, hopper, or vessel weighing, the heavy-duty CCL-SCA series floor stand tank scales are specially designed for heavy-capacity static concentric loads. These specially-designed load cell kits bolt directly to the floor and the accompanying tank, bin, or hopper. The compact CCL-SCA stand design is engineered to minimize stand installation time. In addition to quick installation, each CCL-SCA unit lacks the need for additional external stabilizing hardware. The CCL-SCA standard system capacities range from 150,000/68,000 kg capacities to 800,000 lb/363,000 kg capacities, and feature 3 or 4 cell mounting stand configurations. These robust load cell kits are ideal for heavy-duty industrial applications, whether they be new installations or kit conversions. Features • Stainless Steel SCA Compression Load Cells • Stainless Steel Junction Box • Includes Interconnect Cable • Capacities Range from 150,000 lb / 68,000 kg to 800,000 lb / 363,000 kg • Accommodates Tanks with up to 10 Legs • 18.5 x 18.5 in / 47 cm x 47 cm Heavy-Duty Steel Plates • Powder-Coated Mild Steel Load Cell Stands • Includes 1 Load Cell Trim Box • Features Self-Checking Load Cell Stands Specifications Model: CCL-SCA series Capacities: Standard model capacities ranging from 150,000/68,000 kg capacities to 800,000 lb/363,000 kg capacities Load Cell Type: Stainless steel SCA series compression load cells Load Cell Cable: 50 ft / 15 m Stand Type: Self-checking, bolt-down design Stand Construction: Powder-painted mild steel Junction Box Type: Stainless steel 4 cell trim box
