Tension load cell THTC series

S-beamsingle-axiscapacitive

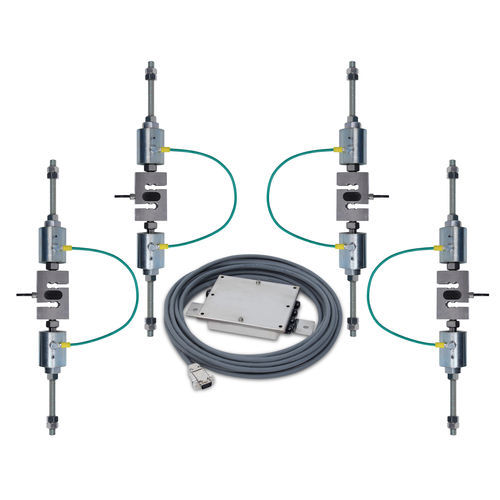

Cardinal Scale’s THTC series load cell kits are designed for use with suspended hoppers and tanks. Sixteen models are available in 3 or 4 cell arrays all featuring environmentally-sealed stainless steel load cells. The THTC weighing systems are resilient to temperature, moisture, and vibration fluctuations. The kits come with linkage options such as threaded rods (standard), J-bolts, or a combination of a threaded rod and a J-bolt, as well as custom-length rods. Each load cell kit comes complete with three or four linkage assemblies, stainless steel tension load cells, mild steel linkages, stainless steel junction box, and load cell cables. THTC kits are ideal for environments when floor-level restrictions include equipment, sanitary issues, or load-out applications. These load cell kits range from light-to-heavyweight applications—750 lb to 80,000 lb capacities. The load cell adapter and thread rod assembly are Teflon isolated. Features • 16 Models Available in 3 or 4 Cell Arrays • 3 or 4 Load Cell Tension Assemblies • Complete Kit for Suspension Hopper Scales • Easy to Install • Grounding Strap Included for Discharge Protection • Ideal for New Installations or Conversions • J-bolts Instead of Rods Also Available • Joint Rod Ends Equipped With Teflon Isolators • NTEP-Certified Stainless Steel Waterproof Load Cells • Resilient to Temperature and Vibration Fluctuations • Special Length Rods Available in Custom Sizes • System Capacities Range from 750 lb to 80000 lb Specifications System Capacities Available: Ranging from 750 lb to 80,000 lb Load Cell Certifications: Load cells are NTEP, OIML, and VCAP certified Country of Origin: USA
