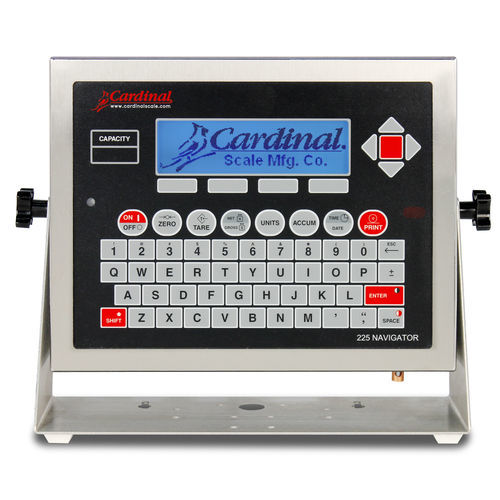

Digital weight indicator 225 Navigator

benchtopwaterproofrugged

The 225 Navigator weight indicator’s transflective display technology allows the 240 x 64-pixel (5-inch/127 mm W x 1.33-inch/34 mm H) back-lit LCD with 1-inch high characters to be viewed under any lighting conditions from direct sunlight to total darkness. With an optional dual scale input board, up to 3 scales with total weights can be viewed simultaneously. Standard features include IP66 washdown stainless steel enclosure, 4 bi-directional RS232 serial ports, USB-B port, QWERTY keypad, 4 soft keys, 13 function keys, navigation keys, 16 Preset Weight Comparators (PWCs), 8 input control lines, 16 output control lines, piece count, batching, electronic tally roll, and 200 ID database for truck storage. NTEP legal-for-trade and OIML certified. Supports up to 14 350-ohm load cells. Features •200 ID’s •240 x 64 Pixel LCD •4 Soft Keys •Alphanumeric Keypad •Electronic Tally Roll •IP66 Enclosure Rating •Navigation Keys •NTEP Legal for Trade •OIML Certified •Powers up to 14 Load Cells Specifications Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max. Enclosure Type: Stainless steel wall or desk-mount Enclosure Size: 10.8 in W x 3.2 in D x 8.3 in H / 275 mm W x 80 mm D x 210 mm H Weight: 9.2 lb / 4.2 kg (Size and Weight does not include mounting bracket stand) Operating Temperature: 14º to 104º F (-10º to +40º C) Operating Humidity: 90% non-condensing (maximum) Display: 240 x 64 pixel (5 in W x 1.33 in H / 127 mm W x 34 mm H) monochrome graphics LCD with white LED backlight
