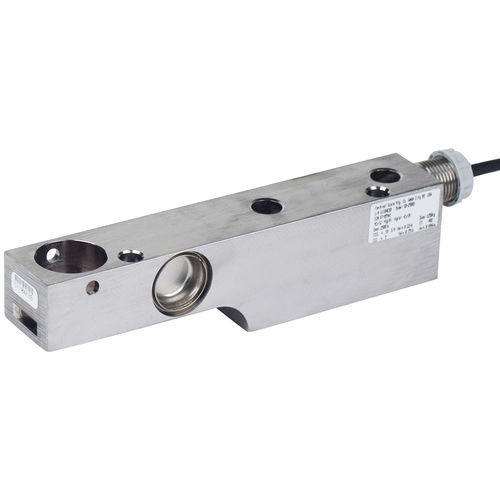

Shear beam load cell SB series
beam typestrain gaugeweighing

Shear beam load cell - SB series - Cardinal Scale - beam type / strain gauge / weighing
Shear beam load cell - SB series - Cardinal Scale - beam type / strain gauge / weighing
Add to favorites
Compare this product


Characteristics

Type
shear beam
Form
beam type
Technology
strain gauge
Applications
weighing, for hopper
Other characteristics
OIML, stainless steel, precision, NTEP, IP68, waterproof, corrosion-resistant
Rated load

2,500 lb, 5,000 lb, 10,000 lb, 20,000 lb
(1,133.98 kg, 2,267.96 kg, 4,535.92 kg, 9,071.85 kg)

Description

Cardinal’s model SB shear beam load cells promote a variety of applications, such as low-profile platform scales, tank and hopper weighing, and other process control systems. Constructed of high-grade stainless steel, these load cells offers strength and protection from caustic or corrosive environments. Provided with the load cell are mounting holes for securing the cell, and a 6 m integral multiconductor-shielded cable secured by a compression strain relief seal. These cells are welded closed, providing superior waterproofing, while remaining flexible over the life of the load cell. NTEP legal-for-trade and OIML certified. Available in multiple capacities. Features •Environmentally-Sealed •IP68 Protection Class •NTEP Legal for Trade •OIML Certified •Precision Engineering •Stainless Steel •VCAP Certified Specifications NTEP Approval: 87-059 OIML Approval: R60/1991-DK-97.02 Accuracy Class: III / IIIL - C3 Minimum Dead Load: 0 lb / 0 kg Safe Load Limit: 150% R.C. Ultimate Load: 300% R.C. Rated Output: 2mV/V Cable Length: 20 ft / 6 m Material: Stainless Steel Capacities Available: 2,500 lb (1,130 kg), 5,000 lb (2,260 kg), 10,000 lb (4,500 kg), and 20,000 lb (9,000 kg)
