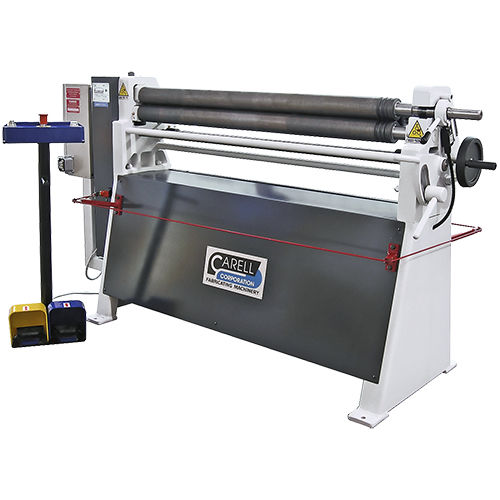

3-roll plate bending machine LS series

electric

The Carell LS Series is a 3 roll, single initial pinch plate bending machine with precision adjustment of lateral bending roll and powered rotation of upper and lower pinch rolls using high efficiency motor/reduction unit. STANDARD FEATURES Both Upper roll and Central Pinch rolls driven by electric motor and oil bath speed reducer through NiCrMo solid stock gears Base in electro-welded and/or reinforced spheroidal cast steel, stress relieved Lateral roll, idle and moving on roller bearings Central pinch roll pinch pressure adjustable by ergonomic easy adjust cam Front quick release top roll with rotation lock out safety switch and set lock Lateral roll movement via precision heavy duty worm gear and manual wheel crank or optionally powered up/down by efficient drive train system Lateral bending roll and pinch roll incline for cone working Low voltage foot pedal stand for CW/CCW rotation w/ E-stop palm button Multi point safety system including circumferential trip wire Instruction manual
