Metal pallet box

wire meshstoragetransport

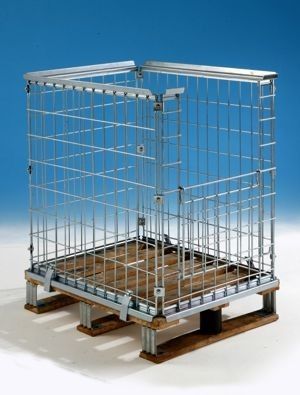

The pallet cage model Duesseldorf, called also pallet profile or box/crate for wooden pallets is used as cheap industrial container as the peripheric structure made of electrolytically galvanized wire is connected with the wooden pallet (German model dim. mm 800x600 that is the half of the standard EURO pallet). It’s equipped with a front fold-down gate to facilitate the load/unload operations and with an upper sheet profile to be able to stack safely the pallets. It’s foldable to optimize the space when it’s not used in the warehouse or on the trucks and can be inserted into the shelf units. The pallet cage is widespread in the logistics and transport branch and used as displayer in the discount markets supermarkets and hypermarkets. The pallet is sold separately Technical specifications USE:INDUSTRY, SUPERMARKETS, TRANSPORTS TO BE USED WITH PALLET 600X800 OUTSIDE DIMENIONS [mm]:615X810X975H (INCLUDING PALLET) INSIDE DIMENSIONS [mm]:565X765X800H FOLDED DIMENSIONS [mm]:1315X870X70H MATERIAL:STEEL RODS AND STEELS TARE [Kg]:17,5 LOAD CAPACITY [Kg]:800 STATIC STACKABILITY:3+1 SIDES MESH [mm]:60X100 SURFACE TREATMENT:BRIGHT ELECTROLYTIC ZINC EQUIPMENT:FRONT FOLD-DOWN GATE ON THE SIDE 615. THE CAGE IS STACKABLE AND FOLDABLE THANKS TO THE SHEET PROFILE COMPATIBLE WITH THE PALLET 600X800, IT’S EQUIPPED WITH PRACTICAL HOOKS ALLOWING TO CONNECT THE CAGE WITH THE PALLET EASILY. IDEAL DISPATCH:30 UNIT = 1 PALLET MM 1370X940X1500H 420 UNITS = 14 PALLETS MM 1370X940X1500H EACH (1 FULL TRUCK)
