Electric winch RPE seriesliftingcompactgear
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- wire rope
- Application
- lifting
- Other characteristics
- compact, gear
- Capacity
250 kg, 500 kg, 990 kg, 1,000 kg
(551.2 lb, 1,102.3 lb, 2,182.6 lb, 2,204.6 lb)- Speed
Max.: 0.2 m/s
(0.7 ft/s)Min.: 0.1 m/s
(0.3 ft/s)
Description

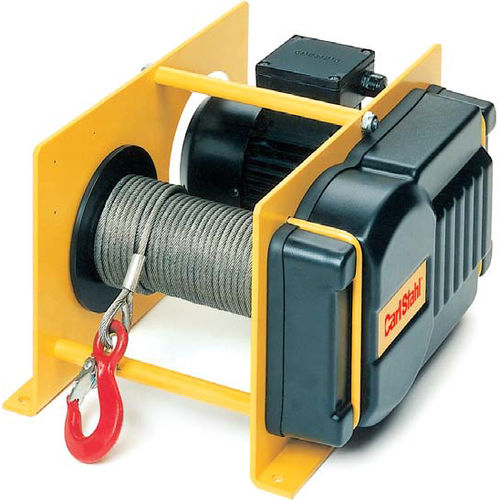

The universal electric-wire rope winch from Carl Stahl is ideal for handling 250–1000 kg from any position or surface. With advanced spur + helical (1st gear) gear design and inbuilt brake motor, the winch offers both compactness and performance. Further, the parts require minimum maintenance; for instance, the ball bearings have long-lasting lubrication.
The standard version comes with IP54 (insulation class F) protection, upgradable to IP55, and requires 230/400 VAC, 50 Hz, 3-phase supply, adjustable to single phase. Further improvements in the form of extended capacity, grooved or dual output drum, travel or gear limit switch, slack-rope switch, or low-voltage (control = 42 V) protection can be provided on request.
All designs comply with EEC Machinery Directive and DIN 15020 (drive group 1 Bm) and BGV D8 (accident safety) standards.
