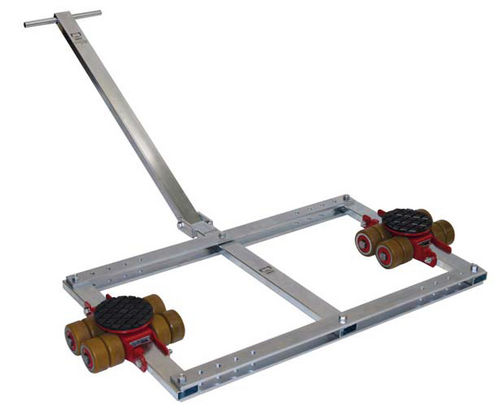

Heavy load moving skate JTLB series

with 4-point support

Carlstahl heavy duty lifting and transport devices, JTLB series are basically the Tandem skates series K professional that offers a capacity up to 14 ton and can accommodate a height of 110 mm. These skates are equipped with specialized JUWAthan professional rollers and come in two versions: JTLB 6 K professional for 6000 kg loads and JTLB 14 K professional for 14000 kg loads. The number of double rollers incorporated are 8 and 16 respectively. The dimensions of the unit are 85 x 85 with a height of 110 mm and a load surface per turntable of 150 mm. The adjustment of steerable skates Vmin - Vmax range between 560 to 1340 deg with a steering handle length of 990 to 1120 mm. Other features include galvanized axles, bolts and safety clip ring, divided rollers for less friction, multi-purpose use, equipped with 2 steering handle and 1 alignment bar each.
