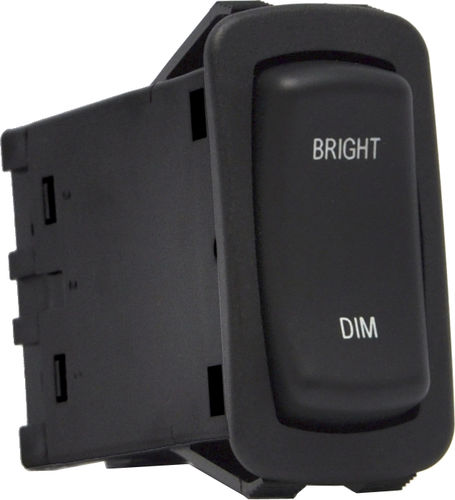

The LD-Series Dimmer Control represents a dynamic breakthrough in dashboard technology. This series offers fully programmable circuitry that can control minimum and maximum illumination levels, the number of steps from total dim to full bright, and adjust illumination levels.
The momentary ratchet design allows for programming of illumination intensity variation speed. It provides intuitive operator recognition and avoids inadvertent actuation. The LD-Series robust envelope protects critical internal components and minimizes electrical connections and the need for extra wires.
Adjustable safety features include a "watch-dog timer" that prevents device lock-up, and a memory device that recalls dimmer position after power interruptions.
The LD-Series dimmer controls feature snap-in mounting and offer choices in ratings, dimming rates, colors, actuator styles & illumination colors, and laser-etched legends. This series has an operating temperature of -40C to +85C. It exceeds SAE J1113 and SAE 1445 EMI standards and mechanical endurance of 100,000 actuations.
Certifications -
No Agency Listings
Number of Poles -
Not Applicable
Ratings -
2-7A 14 Volt
7.1-15A 14 Volt
10A 14 Volt
2-7A 28 Volt
7.1-10A 28Volt
Dimming Rate -
30 - 100% 8 Positions
10-100% 10 Positions
0-100% 11 Positions
Contacts -
Solid State load switching
Dielectric Strength -
1000V A 60Hz applied to each unit for one minute. Voltage increased from 0 to 1000V at a rate of 500V per second, then reduced from 1000V to 0 at a rate of 500V per second with no signs of flashover, arcing, or perforation. All units operating properly before and after test.
