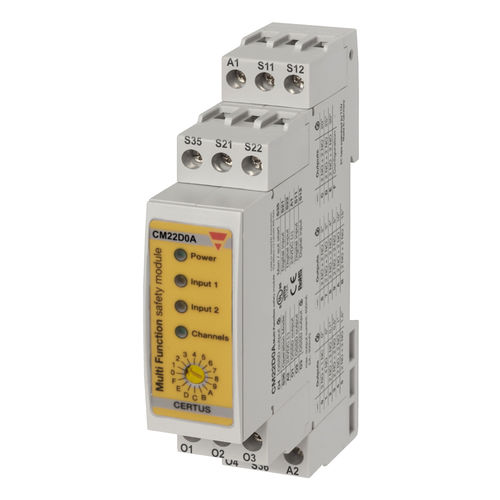

SIL safety monitor CM22D0ADIN rail
Add to favorites
Compare this product
Characteristics
- Mounting
- SIL, DIN rail
Description
Multifunction safety module, PL e, SIL3, 2x OSSD safety instantaneous and 2x OSSD delayed outputs, 24Vdc power supply, 17,5mm DIN rail mount housing, universal safety input for E-Stop, E-gate, Type2 and Type4 ESPE, magnetic switch, safety mat
Specifications
Safety inputs
2-channel
Safety OSSD outputs
4
Safety OSSD delayed outputs
2
EN ISO 13849-1 PL
Level e
IEC 61508 SIL
SIL 3
Operating voltage
19.2 V ... 28.8 V
Housing width
17.5 mm
