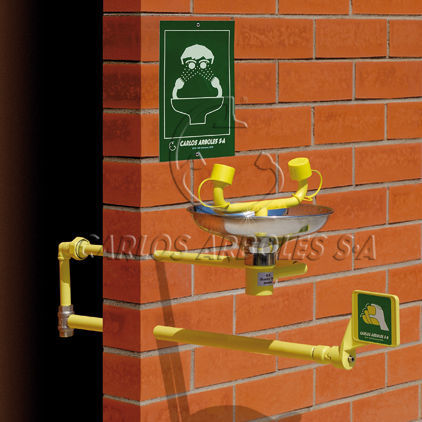

Wall mounting Eyewash, indoor water supply, SS bowl
Self-draining, Extreme temperature protection
GENERAL FEATURES
MATERIALS: Galvanized steel piping. Brass fittings.
ANTICORROSIVE PLASTIC COATING: Polyamide with a thickness of 250-300 microns, in high-visibility yellow color.
WATER INLET: Female thread ISO 228 G1/2"
WATER INLET PRESSURE: Recommended 2 bar / Min. 1.5 bar / Max. 8 bar
EYEWASH
MATERIALS: Eyewash assembly in ABS plastic. Eyewash bowl in stainless steel. Two high-flow aerated water sprays at low pressure with automatic opening anti-dust cover.
FLOW RATE: Regulated at 22 l/min.
OPERATION: Push handle.
VALVE: Full bore valve 1/2" (automatic drain)
WASTE: Female thread ISO 228 G1-1/4"
PACKING
Weight: 7 kg
Dimensions: 80 x 27 x 13 cm
