3D scanner FIX1

measurementweblaser

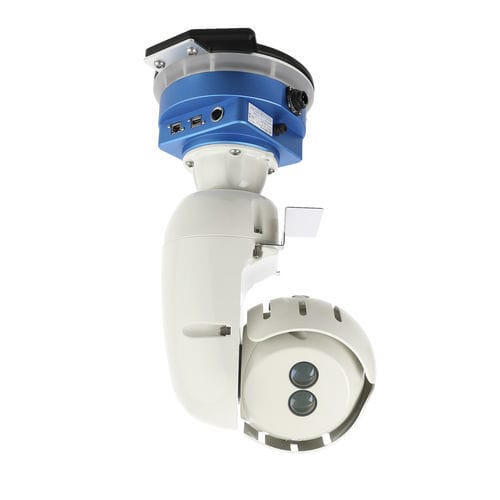

OVERVIEW The Fixed Installation Scanner (FiX1) from Carlson provides a simple, automated method for obtaining volumetric results of stockpiles in many different applications. The FiX1 system can be scheduled to scan, process and deliver a result without any user intervention. With remote connectivity through Cellular and Wi-Fi networks, the FiX1 can be permanently installed into inaccessible areas. It can be left to carry out volumetric scans that are triggered manually or by a user-defined schedule to automate a scan and provide continuous calculations. Hands-Free and Safe Stockpile Surveying Monitor and measure remotely using the FiX1 Web UI all while improving safety in potentially hazardous environments Automate Volumetric Calculations Schedule repeating scans and automate the delivery of volumetric results Base Scans off of Historical data Pre-existing base data can be uploaded to provide a geo-referenced ‘floor’ from which to compute volumes ADVANTAGES • Automated delivery of volumetric results • Provides stockpile volume information or detailed scans in geographically remote areas without assigning manpower and measurement tools • After installation, no knowledge of surveying, data processing or point cloud manipulation is required by users • Improves safety by removing the need for feet on the ground in potentially hazardous areas, such as quarries or open pit mining • Identify trends in material stockpiling or usage • Multiple units can be connected in a network to allow the monitoring of large stockpiles or distinct unrelated locations within a site
