Data analysis software

measurementCADcontrol

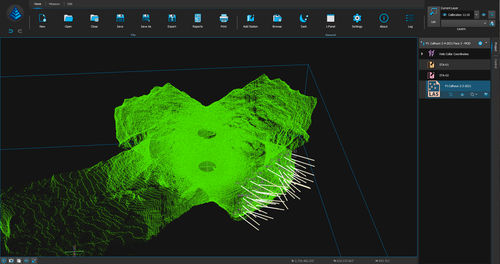

Carlson Scan is the free operational software for the Boretrak2®, C-ALS®, and Void Scanner+ (VS+). It enables full control and function of each system and can run on a Windows-based laptop, Android-based mobile device, or tablet. Scans are displayed in real-time as data is collected with both points and a solid mesh available to view. Scan features post-processing tools for analyzing, geo-referencing, and editing data. Data can be exported via common industry file formats for further processing and integration with widely-used mining and CAD software packages like Carlson Mining and Carlson Point Cloud. CARLSON SCAN FOR THE BORETRAK®2 The Boretrak2 borehole deviation measurement system is a simple-to-use, gyro-based system for measuring the deviation of boreholes drilled in underground mines or on the surface in quarries or open-pit mines. As a successor to the widely used Cabled and Rodded Boretrak systems, the fundamental capabilities of the Boretrak2 are backed by over 35 years of in-the-field history. The features of both units have been combined into a single all-purpose unit capable of measuring boreholes in any inclination: down, up or horizontal. Carlson Scan is used to calibrate, operate, and deploy the Boretrak2. Scan’s reporting capability allows operators to compare the initial drill and blast design to the actual drilled result. This provides the blast engineering team an opportunity to verify or recalculate their design as needed. Results of a Boretrak reading can also be exported and imported to design plans for further planning. By utilizing the Boretak2, sites can ensure optimal safety, blast efficiency, and uninterrupted productivity.
