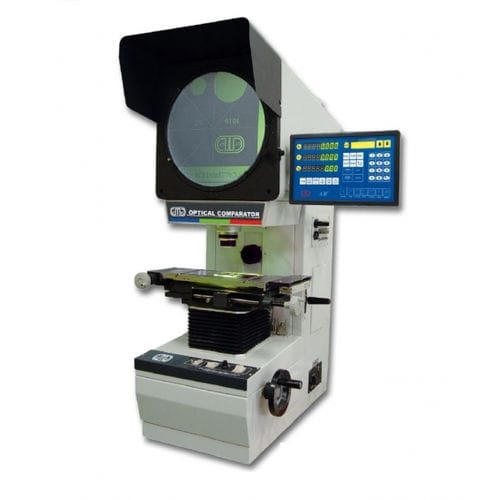

Vertical profile projector PV-3015 series

digital

Vertical Standard Type Digital Optical Comparator, Profile Projector PV-3015 series (Reverse image) PV-3015E series (Erect image) PV series profile projector (Optical Comparator) is one reliable and affordable measuring system of high precision and efficiency. An excellent solution to the most critical requirments of high quality Optical Profile Measuring Suitable for measuring different shapes. Complicated profiles such as press components, gears, cams, treads, tools, dies, turned components, automats ect. Profile Projector is the most effective device to measure most 2 Dimensional parameters like linear dimensions and angles. The components, such as linear scale, digital readout, optical lens, etc., are all made by Carmar Technology. Profile Projector Features: 1.Excellent optical measuring system to project precisely magnified image in Profile Projector. 2.Magnification accuracy : 0.08% contour, 0.12% surface. 3.Equipped with 3M DRO(DC3000) data processing system and foot-switch for measuring. 4.Erect image measuring for different requirements.
