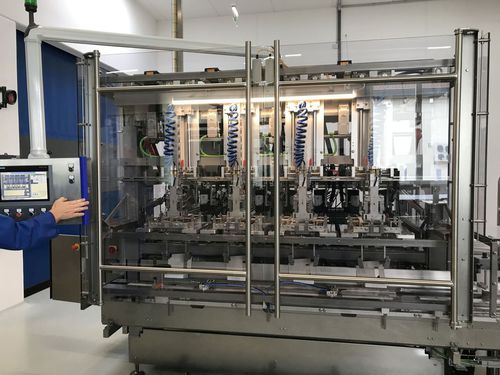

Automatic tray former

Advantages and characteristics: • easy and fast format change (3 - 5 min.) • ergonomic and easy operation, also for untrained staff • rugged basic design • high output (up to 60 cycles/min. per forming head) • operator friendly • low sensitivity to warped carton blanks • high availability • available in stainless steel • high precision and wear resistant stainless steel forming tools • low maintenance cost and maintenance friendly • available for wet operation Execution: • variable speed adjustment due to servo drive • driven magazines • each forming head separately servo driven • rotating vacuum depositor or cam controlled depositor with injector system • carton blank transport (within machine) with servo drive • high process reliability due to intermediate station • central adjustment of the carton transport guides and magazines • temperature controlled hot air system (hot air version) • water cooled forming heads (hot air version) • optional: servo driven chain conveyor for carton output • optional: vacuum station to stabilize formed cartons • blower integrated into former frame, suction nozzles integrated in to conveyor • switch cabinet in stainless steel • control system: Schneider Elau • touch panel: Siemens Products: e.g. frozen food, vegetables, biscuits, sweets, ready meals, bakery products , bulk product, other pieced products and bagged products. Method of operation: HSA/60-2/V5 is a fully automatic carton former with a single, double, triple or quadruple forming tool for erecting and forming punched cardboard folding box blanks of different designs and structures that are joined together by heat sealing, tuck-in or hotmelt at the bottom side flaps.
