Threaded bolt CL-x-LE, CL-xx-LE series

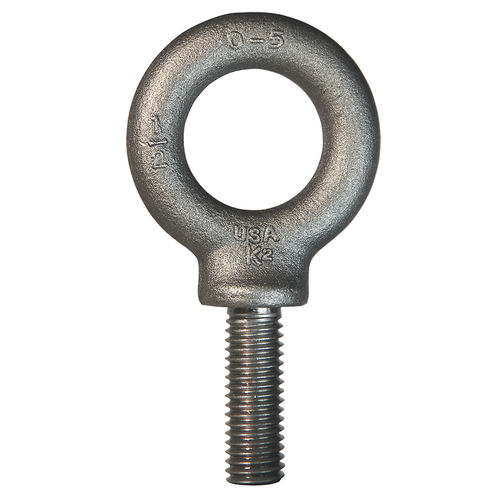

with eyesteelshoulder

threaded bolt
threaded bolt
threaded bolt
threaded bolt
threaded bolt
Add to favorites
Compare this product


Characteristics

Type
threaded
Head
with eye
Material
steel
Other characteristics
shoulder
Length

Min.: 1 in

Max.: 2.5 in

Description

Lifting Eyes Hoist Rings Lifting Eyes are forged steel eyebolts with an integral shoulder for greater strength. These simple, economical lifting devices are suitable for fully vertical lifting only, in-line with the threaded bolt, such as when lifting from a single point or from two points with a spreader bar. For lifting at an angle, Swivel Hoist Rings should be used instead. Available in thread sizes from 1/4-20 to 1"-8. Manufactured and tested according to ASTM A489 and ANSI B18.15 specifications. Safety factor = 5:1. Made in USA. Lifting Eyes should be inspected before each use for possible defects and installed by a person trained in the installation of lifting devices. The tapped receiving hole should be countersunk, free of any debris, and deep enough to ensure proper shoulder seating. Firm hand tightening is recommended for installation; do not use wrenches or bars. Angular lifting should be avoided, because angular lifts significantly reduce rated capacity. Any angular loads must be radial in the plane of the eye, never at an angle to that plane. A steel washer or shim may be used under the shoulder to achieve proper eye orientation, but its thickness should not exceed one thread pitch. A washer may also be required to ensure flush seating on rough mounting surfaces. Do not exceed rated load capacity. Maximum load rating applies to straight vertical lifting only. Lifting at an angle reduces load rating significantly – see Dimensions page for reduced load rating at 45° (this reduced rating should be used for any lift other than at 0° vertical).
