Operating handwheel CL-xx-HWAF, CL-xx-HWAFA series
spokedaluminumcast iron

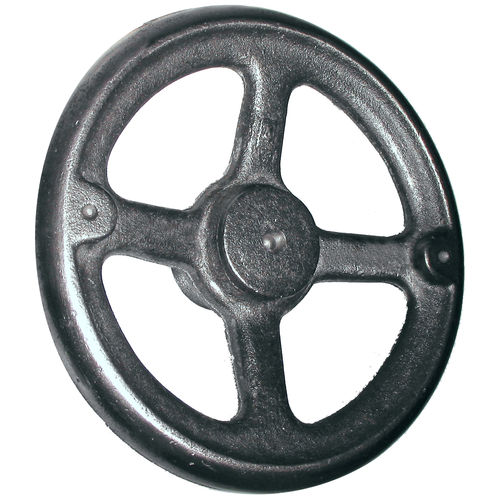

Operating handwheel - CL-xx-HWAF, CL-xx-HWAFA series - CARR LANE MANUFACTURING CO. - spoked / aluminum / cast iron
Operating handwheel - CL-xx-HWAF, CL-xx-HWAFA series - CARR LANE MANUFACTURING CO. - spoked / aluminum / cast iron
Operating handwheel - CL-xx-HWAF, CL-xx-HWAFA series - CARR LANE MANUFACTURING CO. - spoked / aluminum / cast iron - image - 2
Add to favorites
Compare this product


Characteristics

Function
operating
Configuration
spoked
Material
aluminum, cast iron
Outside diameter

Min.: 4 in

Max.: 12 in

Bore size

Min.: 1.25 in

Max.: 3 in

Description

Hand Wheels – Angled-Spoke Rounded Design (Cast Iron or Aluminum) Handles, Knobs & Screw Clamps Rugged, utility-grade hand wheels that can be easily customized for any application. Available in six sizes, from 4" to 12" diameter. Choose either cast iron for maximum strength, or aluminum for lighter weight. See Related Products below to order a Solid or Revolving Handle separately (see table for handle size). See Technical Information below for standard Hand-Wheel Modifications available from the factory, including a tapped hole for the handle. Made in USA. Cast Iron: Class 30 cast iron. DFARS and RoHS compliant. Aluminum: 319 aluminum alloy. DFARS and RoHS compliant.
