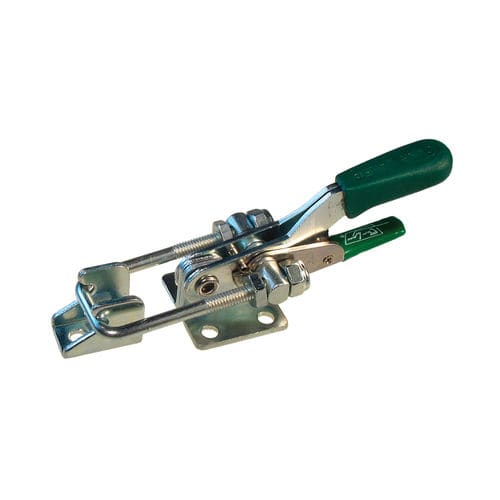

Horizontal toggle clamp CL-100-LPA Series

latch typesteelwith safety interlock

CL-100-LPA Series with Safety Lock (360 lbs) Toggle Clamps CL-100-LPA Safety-lock version of our CL-100-PA toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle. Miniature latch clamp with high holding capacity and a threaded U bolt for adjustability. Large, comfortable handle grip. 1-3/16" drawing movement. Threaded U bolt allows a 25/64" adjustment range. Available in in steel or stainless steel. Supplied with matching latch plate. 360 lbs holding capacity. Made in USA. To achieve full holding capacity, U-bolt-type latch clamps must be used together with the furnished latch plate, or with a suitable custom latch plate of equal width and centerline height. Steel clamps are supplied with matching latch plate CL-100-PA-L. For a replacement U bolt, order CL-100-PA-UBOLT. Stainless steel clamps are supplied with matching latch plate CL-100-PA-S-L. For a replacement U bolt, order CL-100-PA-S-UBOLT. Steel: Clamp body > 1008, 1010, and/or 1018 steel, zinc plated clear chromate. Rivets > 400-series stainless. Handle > Vinyl. DFARS and RoHS compliant. Stainless Steel: Clamp body > 300-series stainless. Rivets > 400-series stainless. Handle > Vinyl. DFARS and RoHS compliant.
