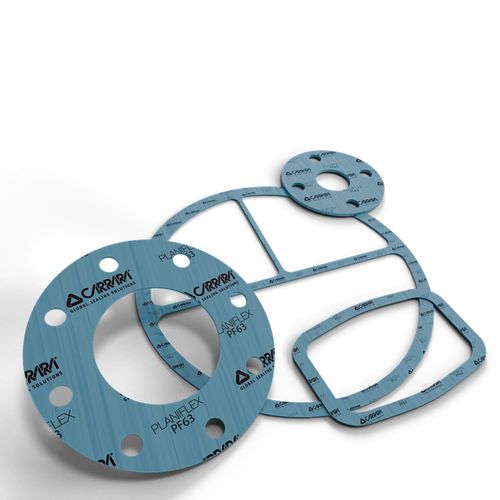

NBR gasket sheet PLANIFLEX™ PF63synthetic fiberaramidflange
Add to favorites
Compare this product
Characteristics
- Material
- NBR, synthetic fiber, aramid
- Product applications
- flange, for gas, oil, fuel
- Other characteristics
- asbestos-free, fiber
- Temperature limit
Min.: -40 °C
(-40 °F)Max.: 250 °C
(482 °F)- Pressure limit
50 bar
(725.2 psi)
Description
Aramid fibres and NBR binder
Characteristics
The compressed fiber gaskets Planiflex™ PF63 are a material with an excellent sealing performance, usable with oils, gas, fuel. Planiflex™ PF63 shows excellent stress retention properties and excellent sealing performance.
Applications
Planiflex™ PF63 can be applied continuously in the temperature range -40°C÷180°C and in the pressure ranges up to ratings 600 lbs and PN40. These gaskets show chemical compatibility in the pH range typical of that of nitrile rubbers.
