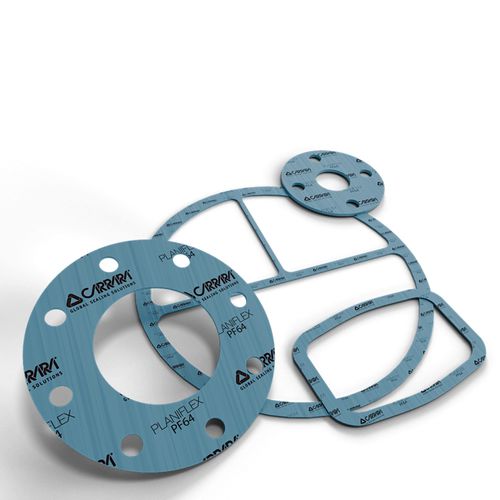

NBR gasket sheet PLANIFLEX™ PF64aramid fiberaramidflange
Add to favorites
Compare this product
Characteristics
- Material
- NBR, aramid fiber, aramid
- Product applications
- flange, for gas, oil, fuel
- Other characteristics
- asbestos-free, fiber
- Temperature limit
Max.: 350 °C
(662 °F)Min.: -40 °C
(-40 °F)- Pressure limit
100 bar
(1,450.4 psi)
Description
Aramid fibres, inert filler and NBR binder
Characteristics
The compressed fiber gaskets Planiflex™ PF64 are a material with an excellent sealing performance, usable with oils, gas, fuel and inorganic acids. Planiflex™ PF64 shows excellent stress retention properties and excellent sealing performance.
Applications
Planiflex™ PF64 can be applied continuously in the temperature range -40°C÷250°C and in the pressure ranges up to ratings 600 lbs and PN40. These gaskets show chemical compatibility in the pH range typical of that of nitrile rubbers.
