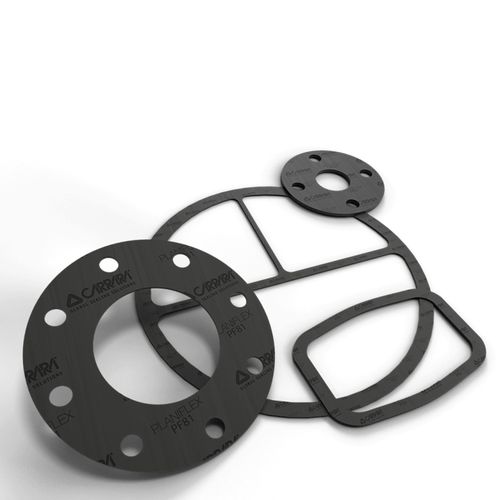

Graphite gasket sheet PLANIFLEX™ PF81NBRnitrilearamid fiber
Add to favorites
Compare this product
Characteristics
- Material
- graphite, NBR, nitrile, aramid fiber, aramid
- Product applications
- flange, gas, fuel
- Other characteristics
- asbestos-free, fiber
- Temperature limit
Max.: 350 °C
(662 °F)Min.: -40 °C
(-40 °F)- Pressure limit
100 bar
(1,450.4 psi)
Description
Aramid fibres, inert filler, graphite and NBR binder.
Characteristics
The compressed fiber gaskets Planiflex™ PF81 are a material with an excellent sealing performance, usable with oils, gas, fuel and inorganic acids. Planiflex™ PF81 shows excellent stress retention properties and excellent sealing performance.
Applications
Planiflex™ PF81 can be applied in the temperature range -40°C÷250°C and in the pressure ranges up to ratings 600 lbs and PN40. These gaskets show chemical compatibility in the pH range typical of that of nitrile rubbers.
Catalogs
No catalogs are available for this product.
See all of Carrara Global Sealing Solution‘s catalogsOther Carrara Global Sealing Solution products
COMPRESSED FIBER SHEETING PLANIFLEX™
