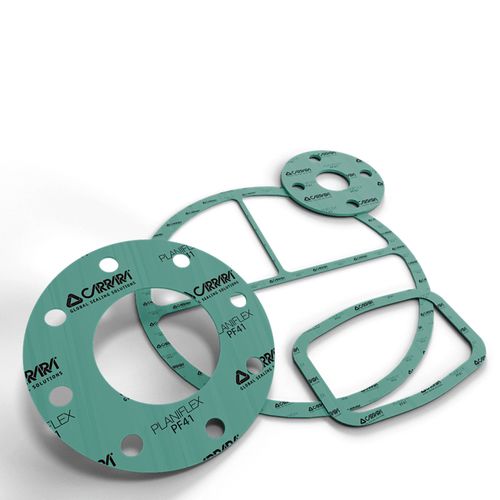

NBR gasket sheet PLANIFLEX™ PF41carbon fiberflangeasbestos-free
Add to favorites
Compare this product
Characteristics
- Material
- NBR, carbon fiber
- Product applications
- flange
- Other characteristics
- asbestos-free, fiber
- Temperature limit
Min.: -40 °C
(-40 °F)Max.: 180 °C
(356 °F)- Pressure limit
40 bar
(580.2 psi)
Description
Organic fiber NBR binder.
Characteristics
The compressed fiber gasketing sheets Planiflex™ PF41 are the greatest material for general applications. Economic, secure, tested.
Applications
Planiflex™ PF41 can be applied continuously in the temperature range -40°C÷120°C and in the pressure ranges up to ratings 600 lbs and PN40. These gaskets show typical chemical compatibility in the middle of the pH range.
Catalogs
No catalogs are available for this product.
