Aramid gasket sheet PLANIFLEX™ PF81RwiregraphiteNBR
Add to favorites
Compare this product
Characteristics
- Material
- graphite, wire, NBR, nitrile, aramid
- Product applications
- gas, fuel
- Other characteristics
- fiber
- Temperature limit
Min.: -40 °C
(-40 °F)Max.: 350 °C
(662 °F)- Pressure limit
100 bar
(1,450.4 psi)
Description

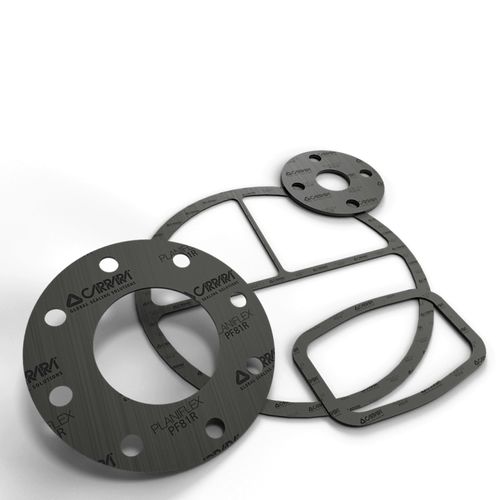

Aramid fibres, graphite and NBR binder wire reinforced.
Characteristics
The compressed fiber gaskets Planiflex™ PF81R are a material with an excellent sealing performance, usable with oils, gas, fuel and inorganic acids. Planiflex™ PF81R shows excellent stress retention properties and excellent sealing performance.
Applications
Planiflex™ PF81R can be applied continuously in the temperature range -40°C÷250°C and in the pressure ranges up to ratings 600 lbs and PN40. These gaskets show chemical compatibility in the pH range typical of that of nitrile rubbers.
