Diesel generator set POWERLINE RG15 TIER 4 INTERIM

three-phase60 Hzdirect fuel injection

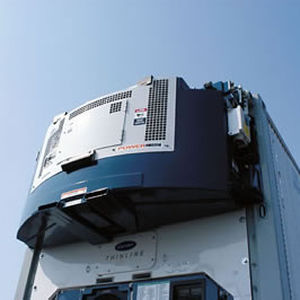

The PowerLINE® generator set contains a 23.9 KW V2203-DI* engine and a 15 kW wound generator. The engine includes an electronic governor system that provides near-constant engine speed, which results in more stable voltage output. The powerful, reliable; low- maintenance field wound generator produces 460 volts of continuous power and features an internally excited, self-regulated design. All electrical components are enclosed within the generator package and provide superior resistance to moisture and salt. The model 69RG15 mounts to properly equipped ISO containers, in front of the refrigeration unit’s upper face. Generator sets are typically provided with "pin mounting to attach to the containers header rail. Clamp mounting to the corner casting of the container is available as an option. In either case, when mounted, the 69RG15 envelope allows access to the refrigeration unit control box. This applies to all Carrier and most competitive units as well. Additionally the design of the equipment considered a deep footprint to avoid tipping due to rough handling by yard forklifts, and fork pockets are extended and reinforced to eliminate fork tine damage. The FuelWise™ option is available and can reduce fuel consumption up to 28%. This directly translates to a reduction of the units carbon footprint by up to 28%.
