Hydraulic press Auto seriestestautomaticbench-top
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- test
- Control
- automatic
- Other characteristics
- bench-top
- Applications
- laboratory
- Force
15 tf, 25 tf, 30 tf, 48 tf
- Opening
Max.: 22 in
Min.: 1 in
- Stroke
4 in, 6 in
- Weight
Max.: 3,444 lb
(1,562 kg)Min.: 625 lb
(283 kg)- Overall width
24 in, 29 in, 39 in
- Overall height
45 in, 46 in, 72 in
Description

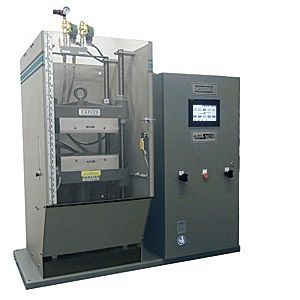

Carver Auto Series Plus automatic laboratory presses feature a large 7” color touch screen operator interface, enhanced platen temperature control with auto-tuning, ramp heating capability, storage of up to 250 recipes and real-time trending of force and temperature. Optional features include seven day timer for auto platen heat-up, data logging for cycle parameters, and access to logged data through Wi-Fi. 48 ton models include an integral wrap-around floor stand.
Auto Series Plus press models are available with 15 to 48 tons of clamping force and 6" x 6" to 19” x 19” platens. These benchtop presses are used in quality control and research and development for test sample preparations, destructive testing, molding, laminating and fluid extraction.
