Hydraulic press 5420

manualcalibrationdouble-column

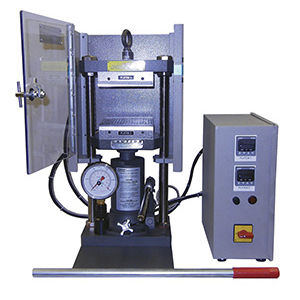

(Model Mini CH) Twelve ton manual, two-column hydraulic lab press with digital heated platens. Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. Electrically heated platens for temperatures up to 650 deg F (343 C upon request) with digital controller per platen. (picture shown with analog gauge) Specifications of the Bench Top Manually Heated Mini CH 5420 Model Press: Manually operated Two (2) fully threaded columns Heated platen package, including: Two (2) 6” x 6” electrically heated steel platens Temperature range up to 650 deg F One (1) digital temperature controller per platen 0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available) 115/1 supply voltage (230V option upon request; Model 5420.4010) Light gray safety shield Dark gray frame Electrical disconnect (non-fused) Weight: 225 pounds (uncrated) Available Options: Manual cooling including hoses (catalog# 5420.1011 [115V] or 5420.4011 [230V]) Force Calibration Certificate using equipment traceable to NIST (part# 1525.00001) [each] Temperature Calibration by instruments traceable to NIST (part# 1525.00003) [per digital controller] Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D) Floor stand 36"L-R x 26"F-B x 30"H W/6" Casters Wt 260# (catalog #223215C) Cooling manifold kit for 6" x 6" work area (part #5601) 12 ton hydraulic unit repair kit (catalog #3729) Two gauge manifold (catalog #2096-1CE for Mini C) Carver Special Hydraulic Fluid (Oil) (part #2170)
