Hydraulic press 4122

manualcalibration4-column

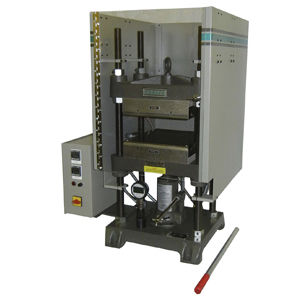

(Model 12-12H) Twelve ton, manual, four-column hydraulic lab press with digital heated platens. Fully guided moving platen assures parallelism over 12" x 12" surface. Daylight opening adjustable to 10". Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. Electrically heated platens for temperatures up to 650 deg F (343 C upon request) with one digital controller per platen. (picture shown with digital gauge) Specifications of the Bench Top Manual Heated Model 12-12H (4122) Press: Manually operated Four (4) fully threaded columns Heated platen package, including: Two (2) 12”x 12” electrically heated steel platens 2600 watts per platen Temperature range up to 650 deg F One (1) digital temperature controller per platen 0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available) 230/1 supply voltage FLA 22 Light gray safety shield Dark gray frame Electrical disconnect (non-fused) Weight: 770 pounds (uncrated) Available Options: Manual cooling including hoses (catalog #4389.4021) Force Calibration Certificate using equipment traceable to NIST (part# 1525.00001) [each] Temperature Calibration by instruments traceable to NIST (part# 1525.00003) [per digital controller] Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D) Floor stand 36"L-R x 26"F-B x 30"H W/6" Casters Wt 260# (catalog #223215C) Manifold kit for cooling hoses (part #5604) 12 ton hydraulic unit repair kit (catalog #3729) Carver Special Hydraulic Fluid (Oil) (part #2170) Two gauge manifold (catalog #2096CE)
