Hydraulic press 4120

manualcalibrationdouble-column

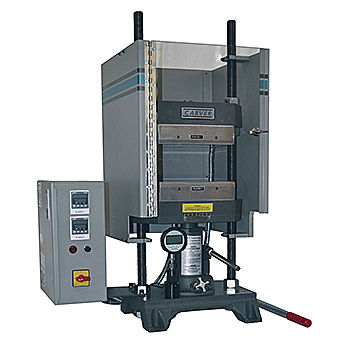

(Model 12-10H) Twelve ton, manual, two-column hydraulic lab press with digital heated platens. Similar to No. 4386 press, but heavier construction and guided moving platen. Electrically heated 10" x 7" platens for temperatures up to 650 deg F (343 C upon request) with one digital controller per platen. Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. (picture shown with analog gauge) Specifications of the Bench Top Manually Heated Model 12-10H (4120) Press: Manually operated Two (2) fully threaded columns Heated platen package, including: Two (2) 10” x 7” electrically heated steel platens 1,000 watts per platen Temperature range up to 650 deg F One (1) digital temperature controller per platen Two (2) Strip (flat) heaters per platen 0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available) 115/1 supply voltage Light gray safety shield Dark gray frame Electrical disconnect (non-fused) Weight: 420 pounds (uncrated) Available Options: Manual cooling including hoses (catalog# 4120.1011) Force Calibration Certificate using equipment traceable to NIST (part# 1525.00001) [each] Temperature Calibration by instruments traceable to NIST (part# 1525.00003) [per digital controller] Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D) Floor stand 36"L-R x 26"F-B x 30"H W/6" Casters Wt 260# (catalog #223215C) Manifold kit for cooling hoses (part #5603) 12 ton hydraulic unit repair kit (catalog #3729) Two gauge manifold (catalog #2096CE)
