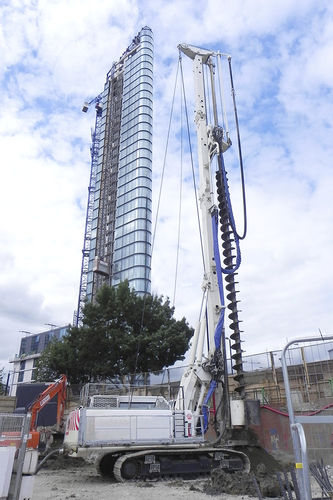

Continuous flight auger (CFA) drilling rig B360 XP-2
geotechnicalpilingdeep

continuous flight auger (CFA) drilling rig
continuous flight auger (CFA) drilling rig
continuous flight auger (CFA) drilling rig
continuous flight auger (CFA) drilling rig
continuous flight auger (CFA) drilling rig
continuous flight auger (CFA) drilling rig
continuous flight auger (CFA) drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
continuous flight auger (CFA)
Function
geotechnical
Applications
piling, deep
Mobility
crawler
Drilling unit
rotary
Other characteristics
hydraulic
Drilling diameter

Max.: 1,200 mm
(47 in)

Min.: 0 mm
(0 in)

Drilling depth

Max.: 34 m
(111'06" )

Min.: 0 m
(0'00" )

Machine weight

125 t
(137.8 us ton)

Motor power

400 kW
(543.85 hp)

Description

The Casagrande B360 XP in CFA Configuration is a machine dedicated to give the specialist contractor an equipment to perform large diameter rotary piling. It is the result of research and innovation based on over 50 years of experience and success of the company in the fi eld of foundations and geotechnical engineering. Thanks to the high torque of the rotary head up to 467 kNm (opt.), to the HD kelly bars and a powerful winch, the B360 XP is able to drill quickly deep and large piles in hard soils. The crowd winch with a line pull of 600 kN and the stroke of the rotary head of 19 m will drive The SPM (Smart Power Management) allows an intelligent engine power management to improve performances and productivity of machinery. The XP technology monitors the istantaneus power fl ows and allocates the full available power to the job duties. The results is an increasing of the machine effi ciency. The design guidelines have taken particular care in the welfare of the operator and its high level of professional performance. In particular, best results were obtained in terms of ergonomics, both in the cabin and outside of the machine, and with regards to noise reduction.
