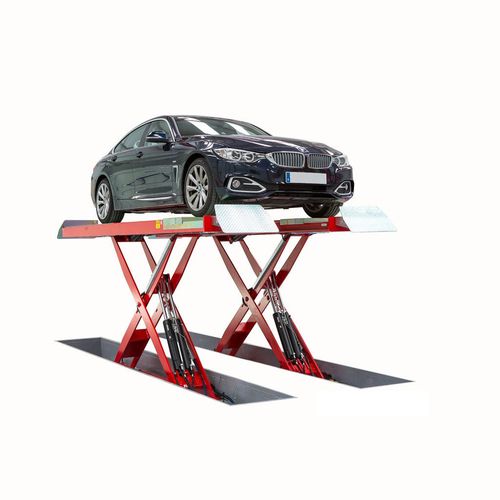

Double-scissor post lift T5.5AXPD
3.5 ton5 tonhydraulic

Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 2
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 3
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 4
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 5
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 6
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 7
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 8
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 9
Double-scissor post lift - T5.5AXPD  - Cascos Maquinaria, S.A. - 3.5 ton / 5 ton / hydraulic - image - 10
Add to favorites
Compare this product


Characteristics

Type
double-scissor
Maximum load
3.5 ton, 5 ton
Operation
hydraulic
Applications
for car
Voltage
400 V, 230 V
Other characteristics
platform
Lifting height

Min.: 0 mm
(0 in)

Max.: 2,080 mm
(81.89 in)

Minimum height

Min.: 0 mm
(0 in)

Max.: 270 mm
(10.63 in)

Motor power

8 kW
(10.88 hp)

Pressure

Min.: 4 bar
(58.02 psi)

Max.: 8 bar
(116.03 psi)

Weight

3,060 kg
(6,746.15 lb)

Description

-This model is very much in demand by garages specialising in tyre changes and by technical inspection centres (MOT centres). -The most fully equipped lift, very much in demand by garages specialising in tyres due to its versatility and adaptation to all types of work. -Front recessing equipped with 4 mobile regulation trays. -These lifts come equipped with pneumatic locking of alignment plates. -It lifts the car from the wheels, like the 4 post lifts, with the advantage of saving space in the garage by eliminating posts. -Principal and auxiliary lifts equipped with double hydraulic system (4 cylinders) 2 master + 2 slave, crosswise. Hydraulic safety. -Equipped with guide rail for auxiliary jack. -Equipped as standard with manual pump for lowering, pneumatic pressure regulator and water separator filter. -Convenient to use as it has a new automatic system for seeking the optimum level for every user. -Reinforced base (150 kg) equipped with 8 level adjustment points. -Very quiet hydraulic operation. -Our T5.5 lifts stand out due to their finishes, their robustness and their reliability. Structure and reinforced base -Very robust structure and base, manufactured based on a solid tread. -Reinforced base (150 kg). -Base equipped with 8 adjustment points for levelling the platform. Protection and safety -Manual pump for emergency lowering. -Regulation of pneumatic pressure for the correct operation of the safety mechanism. -Water separating filter for a longer useful life of the cylinders and safety devices. -Principal and auxiliary lifts equipped with double hydraulic system of 4 cylinders (2 master + 2 slave) for greater safety.
