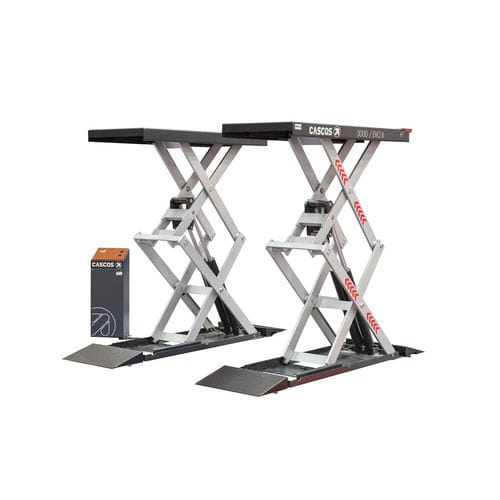

Double-scissor post lift EVO II
3 tonhydraulicfor car

Double-scissor post lift - EVO II - Cascos Maquinaria, S.A. - 3 ton / hydraulic / for car
Double-scissor post lift - EVO II - Cascos Maquinaria, S.A. - 3 ton / hydraulic / for car
Double-scissor post lift - EVO II - Cascos Maquinaria, S.A. - 3 ton / hydraulic / for car - image - 2
Double-scissor post lift - EVO II - Cascos Maquinaria, S.A. - 3 ton / hydraulic / for car - image - 3
Double-scissor post lift - EVO II - Cascos Maquinaria, S.A. - 3 ton / hydraulic / for car - image - 4
Double-scissor post lift - EVO II - Cascos Maquinaria, S.A. - 3 ton / hydraulic / for car - image - 5
Double-scissor post lift - EVO II - Cascos Maquinaria, S.A. - 3 ton / hydraulic / for car - image - 6
Add to favorites
Compare this product


Characteristics

Type
double-scissor
Maximum load
3 ton
Operation
hydraulic
Applications
for car
Voltage
400 V, 230 V
Other characteristics
low profile
Lifting height

Max.: 1,910 mm
(75.197 in)

Min.: 0 mm
(0 in)

Minimum height

0 mm
(0 in)

Motor power

3 kW
(4.08 hp)

Weight

800 kg
(1,763.7 lb)

Description

-Lift that is very much in demand for visual inspections, tyre changes, MOTs, alignment, mechanical, body and paint work … -Very robust lift, manufactured based on a solid tread. -Hydraulic system with 4 cylinders (2 master + 2 slave). -Cylinders manufactured andtested individually in our factory. Hydraulic -safety (does not require compressed air). -Automatic button-operated bleeding. -Access ramps that act as an extension of the runway, lengthening it up to 1,986 mm . -reversible in the direction of the load. Solidity -Very robust structure and base, manufactured based on "solid tread". Quality and safety of the hydraulic system -Cylinders manufactured and checked one by one in our factory. Five-year guarantee for the hydraulic system (consult conditions). -Double hydraulic system with 4 cylinders crosswise (2 master + 2 slave, independent). -Our EVO range does not require compressed air. Simplified electric system -Simplified and reliable electric system that does not required circuit boards. Automatic bleeding -Automatic bleeding with a button on the console. Runway extensions -Sliding extension integrated in the runway . -Mobile access ramps that act as extensions (EVO III R). -They increase the length of the runway to adapt to different vehicle lengths. ISO 9001 quality certifications and IQNet In addition to manufacturing with the highest quality standards ISO 9001 since 1999, our lifts are standardised by the most prestigious certification bodies: Aenor, IQnet, Bureau Veritas and TüV Nord.
