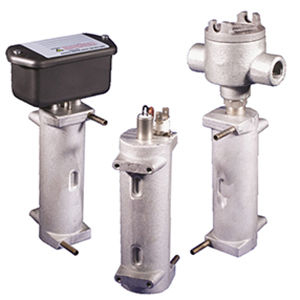

Water heater CAST-X 500

circulationstainless steel

APPLICATIONS: Pre-Heating of Oils & Fuels (liquid or gas) Heating of Beverages & Foodservice Liquids Warming of Inks & Coatings for Converting Industry Sample Heating for Analytical Instruments Laboratory Applications Medical Device Applications FEATURES & BENEFITS: Fluid Path has No Contact with Heating Elements Heated Media is Isolated in Seamless 316 Stainless Steel Tubes Allows for Safe Heating of Explosive Gases & Flammable Liquids Excellent Performance in High-Pressure Applications Suitable for Use with Sterile and Zero Contaminant Processes Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.) Small Size Enables Easy Integration into Larger Machines Self-Draining Flow-Tubes, and Long-Life Heating Elements SPECIFICATIONS: Power: Up to 1500 W Voltage Range: 110 - 240 V Max Line Current: 12.5 A Tubing: .250” OD (1/4") (6.3 mm) .035” Wall (.89 mm) Overall Process Tube Length: 84” (2133 mm) 316L Stainless Steel (standard) Inconel (optional upgrade) Passivated or Electro-Polished (optional upgrades) Max Pressure: 5100 psi (351 bar) Enclosures: No Enclosure NEMA 1 (general-purpose/dust-proof) NEMA 4 (moisture-resistant) NEMA 7 (explosion-proof) Max Working Temperatures: No Enclosure: 392°F (200°C) NEMA 1 (dust-proof/general-purpose): 250°F (121°C) NEMA 4 (moisture-resistant): 250°F (121°C) NEMA 7 (explosion-proof): 392°F (200°C) Published temperatures are for housing at 12 o’clock position; Higher temps may be possible at 6 o’clock position. See factory for details. Sensors & Controls: K or J Type Thermocouples Resistance Temperature Detectors (RTDs) Snap-Action High-Limit Switches (on no housing version) Available Accessories: Insulating Jackets
