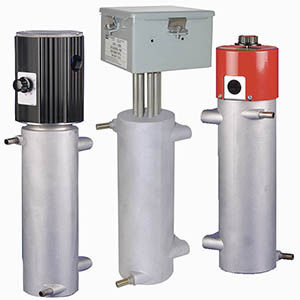

Water heater CAST-X 2000

aircirculation

APPLICATIONS: DI Water Heating Vaporization of Cryogenic Gases & LNG Two-Part Urethane and Foam Systems Anodizing & Plating Pre-Wash Heating Dye Heating for Clothing Manufacturing Air Heating for Coating Drying Applications FEATURES & BENEFITS: Fluid Path has No Contact with Heating Elements Heated Media is Isolated in Seamless 316 Stainless Steel Tubes Allows for Safe Heating of Explosive Gases & Flammable Liquids Excellent Performance in High-Pressure Applications Suitable for Use with Sterile and Zero Contaminant Processes Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.) Small Size Enables Easy Integration into Larger Machines Self-Draining Flow-Tubes, and Long-Life Heating Elements SPECIFICATIONS: Power: 1 kW Total to 6 kW Total Voltage Range: 120 - 575 V Max Line Current: 25 A per circuit Tubing: .50” OD (1/2") (12.7 mm) .065” Wall (1.7 mm) Overall Process Tube Length: 150” (3810 mm) 316L Stainless Steel (standard) Inconel (optional upgrade) Passivated or Electro-Polished (optional upgrades) Max Pressure: 5100 psi (351 bar) Enclosures: NEMA 1 (general-purpose/dust-proof)* NEMA 4 (moisture-resistant)* NEMA 7 (explosion-proof) *Available with Standard or Standoff Design (just need to put asterisk before Available) Max Working Temperatures: NEMA 1 (dust-proof/general-purpose): 482°F (250°C) with standoff: 662°F (350°C) with t-stat (w/ or w/o standoff: 250°F (121°C) NEMA 4 (moisture-resistant): 350°F (175°C) with standoff: 662°F (350°C) NEMA 7 (explosion-proof): 482°F (250°C) Published temperatures are for housing at 12 o’clock position; Higher temps may be possible at 6 o’clock position. See factory for details.
