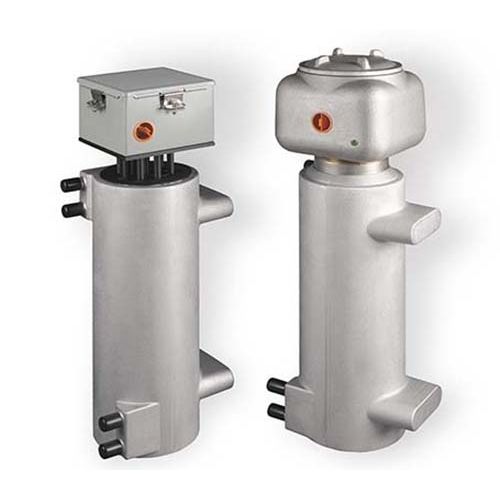

Oil heater CAST-X 3000

circulationstainless steelexplosion-proof

APPLICATIONS: Rocket & Jet Fuel Test Stands Mud Testing Applications (oil exploration) LNG Pre-Heat & Moisture Removal Powder Coating Pre-Wash Systems Packaging Sterilization Phase Change for Cryogenic Applications FEATURES & BENEFITS: Fluid Path has No Contact with Heating Elements Heated Media is Isolated in Seamless 316 Stainless Steel Tubes Allows for Safe Heating of Explosive Gases & Flammable Liquids Excellent Performance in High-Pressure Applications Suitable for Use with Sterile and Zero Contaminant Processes Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.) Small Size Enables Easy Integration into Larger Machines Self-Draining Flow-Tubes, and Long-Life Heating Elements SPECIFICATIONS: Power: 1 kW Total to 24.6 kW Total Voltage Range: 208 - 575 V Max Line Current: 35 A per circuit Tubing: .750” OD (3/4") (19.1 mm) .065” Wall (1.7 mm) Overall Process Tube Length: 142” (3606 mm) each 316L Stainless Steel (standard) Inconel (optional upgrade) Passivated or Electro-Polished (optional upgrades) Max Pressure: 3300 psi (227 bar) Enclosures: NEMA 4 (moisture-resistant) NEMA 7 / ATEX (explosion-proof) Max Working Temperatures: NEMA 4 (moisture-resistant): 572°F (300°C) NEMA 7 / ATEX (explosion-proof): 482°F (250°C) Published temperatures are for housing at 12 o’clock position; Higher temps may be possible at 6 o’clock position. See factory for details. Sensors & Controls: K or J Type Thermocouples Resistance Temperature Detectors (RTDs) Available Accessories: Insulating Jackets Compression Fittings
