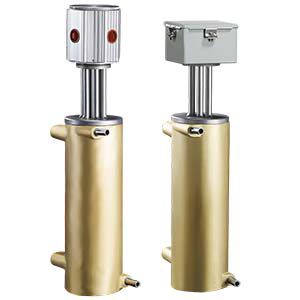

Air heater CAST-X 2000

circulationstainless steelexplosion-proof

APPLICATIONS: Rocket & Jet Fuel Test Stands Multi-Stage Heating LNG Condensation Removal Gas Turbine Fuel Pre-Heat Cryogenic Gas Vaporization Nitrogen Heating FEATURES & BENEFITS: Max Operating Temp of 1112°F / 600°C ! Fluid Path has No Contact with Heating Elements Heated Media is Isolated in Seamless 316 Stainless Steel Tubes Allows for Safe Heating of Explosive Gases & Flammable Liquids Excellent Performance in High-Pressure Applications Suitable for Use with Sterile and Zero Contaminant Processes Small Size Enables Easy Integration into Larger Machines Self-Draining Flow-Tubes, and Long-Life Heating Elements SPECIFICATIONS: Power: 1 - 6 kW Voltage Range: 120 - 575 V Tubing: .500” OD (1/2") (12.7 mm) .065” Wall (1.7 mm) Overall Process Tube Length: 150” (381 cm) Inconel 600 material Passivated or Electro-Polished (optional upgrades) Max Pressure: See Chart Below Enclosures: Explosion-Proof Enclosure, certified to: Class 1, Div. 1 & 2, Groups A, B, C, D Class 2, Div. 1 & 2, Groups E, F, G Class 3, Div. 1 & 2 CSA, with US and Canada Mark Water-Resistant Enclosure, certified to: NEMA/EEMAC Type 4, 12, 13 CSA, File No. 42184: Type 4, 12 IEC 60529, IP66 Ingress Protection Certifications are for enclosure only. Max Working Temperatures: NEMA 4: 1112°F (600°C) NEMA 7: 1112°F (600°C) Sensors: K or J Type Thermocouples Resistance Temperature Detectors (RTDs) Available Accessories: Insulating Jackets Compression Fittings
