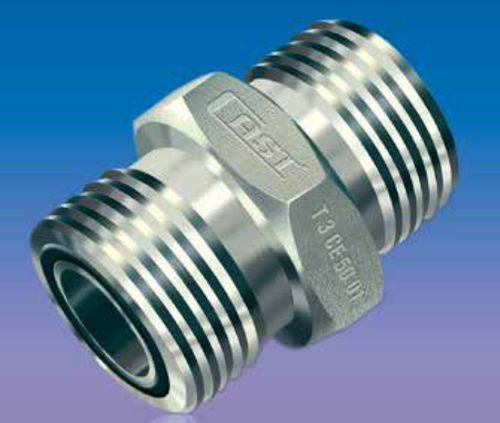

Hydraulic fitting ORFS seriesscrew-instainless steelcarbon steel
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- screw-in
- Material
- stainless steel, carbon steel
- Other characteristics
- high-pressure, poppet
- Diameter
Max.: 38 mm
(1.496 in)Min.: 6 mm
(0.236 in)
Description
The CAST S.p.A. fitting according to the norms ISO 8434-3 / SAE J1453, is a mechanical fitting traditionally used for high pressure oleo-dynamic systems.
The sealing is made by the contact between two metal surfaces, with no deformation of the single components, plus an elastomeric sealing (O-Ring) placed into a groove on the front part of the fitting.
The coupling between the body of the fitting and the flared tube is guaranteed by the tightening nut and by the pressure sleeve on the inside. This allow to realize a fast assembling-disassembling tube making the easiest realization of complex oleo-dynamic systems.
