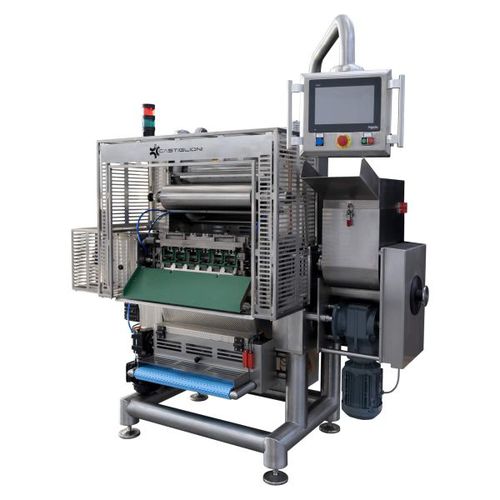

Ravioli forming machine MC540

cappellettitortellonisingle dough

Machine designed for the production of pinched formats such as cappelletti, tortelloni and single-sheet ravioli. Machine suitable for medium and large size pasta factories. • The interchangeable mould is fitted with a quick-connect coupling system for format change. The filling is fed by means of rods. • The mould and filler rods are operated by brushless servo drive motors coupled with oil-bath gearboxes, combining sturdy mechanics with the high speed and accuracy of electronic devices. • The inverter-controlled filler unit is directly connected within the machine and features an independent drive. All product contact components can be easily removed for more accurate cleaning and sanitising. • The machine is fitted with a calibrator with stainless steel rollers. Sheet thickness can be easily adjusted by means of a single lobed handwheel connected to a pair of jacks. Inverter-controlled rollers feature an independent drive. • The machine is fitted with a quick-connect coupling system for format change. • Machine components include a scrap cutter which shreds dough sheet residues after forming, to be ejected from the machine via an independent modular conveyor belt. • All moving components are protected by guards and a safety switch. • All machine operations are controlled by a dedicated electric panel installed on the machine. A 10” colour touch screen operator panel with an easy-to-use intuitive HMI facilitates all control, start, stop and speed adjustment operations. Moreover, recipes can be easily saved and retrieved.
