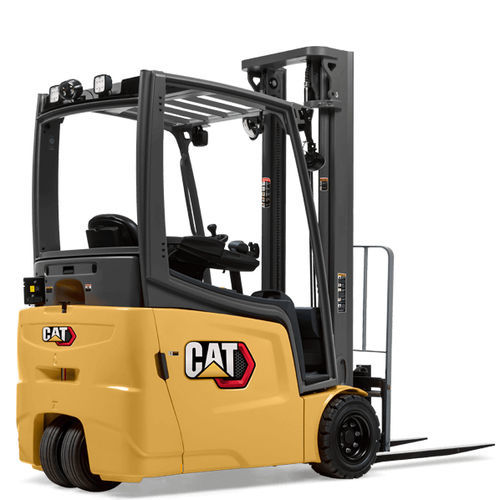

Counterbalanced forklift 2ET series
electricride-onhandling

counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, industrial
Other characteristics
counterbalanced, pneumatic tire, 3-wheel, custom
Carrying capacity

2,510 lb, 3,100 lb, 3,490 lb, 3,880 lb
(1,138.5 kg, 1,406.1 kg, 1,583 kg, 1,759.9 kg)

Lifting height

216 in, 255 in

Overall width

41.7 in, 44.1 in

Overall length

70 in, 74.3 in, 78.5 in

Load center distance

500 mm
(19.7 in)

Weight without load

Max.: 7,421 lb
(3,366.1 kg)

Min.: 5,935 lb
(2,692.1 kg)

Axle loading with maximum load front

Max.: 4,784 kg
(10,546.9 lb)

Min.: 3,534 kg
(7,791.1 lb)

Axle loading with maximum load rear

Max.: 583 kg
(1,285.3 lb)

Min.: 458 kg
(1,009.7 lb)

Axle loading without load front

Max.: 1,534 kg
(3,381.9 lb)

Min.: 1,307 kg
(2,881.4 lb)

Axle loading without load rear

Max.: 1,657 kg
(3,653.1 lb)

Min.: 1,385 kg
(3,053.4 lb)

Overall height with mast raised

3,560 mm, 3,587 mm
(140.2 in, 141.2 in)

Height to top of overhead guard

2,040 mm
(80.3 in)

Seat height

920 mm
(36.2 in)

Length to fork face

70 in, 74.3 in, 78.5 in

Ground clearance under mast with load

80 mm
(3.1 in)

Ground clearance at center of wheelbase with load

100 mm
(3.9 in)

Turning circle radius

Max.: 1,655 mm
(65.2 in)

Min.: 1,440 mm
(56.7 in)

Travel speed

Max.: 16 mph
(25.7 km/h)

Min.: 8.7 mph
(14 km/h)

Lifting speed

Max.: 0.7 m/s
(2.297 ft/s)

Min.: 0.3 m/s
(0.984 ft/s)

Lowering speed

0.6 m/s
(1.969 ft/s)

Maximum operating pressure

230 bar
(3,335.9 psi)

Noise level

67 dB

Description

The 2ET2500-2ET4000 three-wheel series electric pneumatic tire forklifts combine the latest in operator ergonomics, advanced AC control systems and customized performance. Productivity Powerful 3-Phase AC Technology - Optimized productivity makes this an incredibly energy-efficient electric forklift, allowing two shifts with one battery charge in many applications. Display Panel – The high definition and high contrast full color display includes information on service icons, directional indicators and performance modes. Selective Performance Modes – Five-level pre-programmed performance mode selector lets you adapt to various applications. DURABILITY Sealed Components – Electric motors protected to IP54, electro-magnetic brakes and short cables help protect components from dust and moisture, helping to minimize forklift downtime and extend service intervals. Serviceability Performance Customization – Exclusive and comprehensive servicing software allows the factory-trained technician the ability to perfectly match performance parameters to your application. Awareness Curve Control – Curve Control automatically reduces speed while turning corners, helping to ensure control over loads. Visibility – Optimum visibility in all directions due to mast, overhead guard and counterweight design. OPERATOR COMFORT Electric Power Steering – Fully AC power steering provides significantly lower steering effort than a conventional steering system. The lift truck’s design allows for ample leg room and can be adjusted in two planes – height and proximity – for optimum comfort and productivity.
