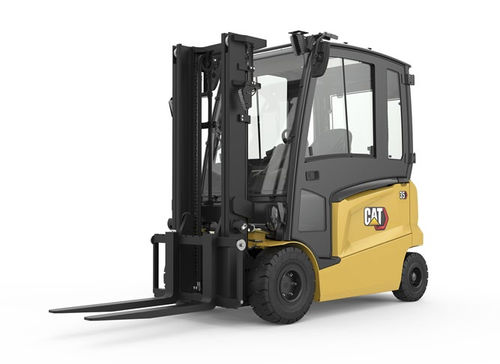

Counterbalanced forklift EP25-35A(C)N
electricride-onhandling

Counterbalanced forklift - EP25-35A(C)N - Cat Lift Trucks - electric / ride-on / handling
Counterbalanced forklift - EP25-35A(C)N - Cat Lift Trucks - electric / ride-on / handling
Counterbalanced forklift - EP25-35A(C)N - Cat Lift Trucks - electric / ride-on / handling - image - 2
Counterbalanced forklift - EP25-35A(C)N - Cat Lift Trucks - electric / ride-on / handling - image - 3
Counterbalanced forklift - EP25-35A(C)N - Cat Lift Trucks - electric / ride-on / handling - image - 4
Counterbalanced forklift - EP25-35A(C)N - Cat Lift Trucks - electric / ride-on / handling - image - 5
Counterbalanced forklift - EP25-35A(C)N - Cat Lift Trucks - electric / ride-on / handling - image - 6
Counterbalanced forklift - EP25-35A(C)N - Cat Lift Trucks - electric / ride-on / handling - image - 7
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for the food industry, for the beverage industry
Other characteristics
4-wheel, counterbalanced, high-performance
Carrying capacity

2,500 kg, 3,000 kg, 3,500 kg
(5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

3,270 mm, 3,300 mm
(128.74 in, 129.92 in)

Overall width

1,190 mm
(46.9 in)

Overall length

3,459 mm, 3,487 mm, 3,600 mm, 3,628 mm
(136.2 in, 137.3 in, 141.7 in, 142.8 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Min.: 4,584 kg
(10,106 lb)

Max.: 5,654 kg
(12,464.9 lb)

Axle loading with maximum load front

Min.: 6,296 kg
(13,880.3 lb)

Max.: 8,183 kg
(18,040.4 lb)

Axle loading with maximum load rear

Min.: 788 kg
(1,737.2 lb)

Max.: 971 kg
(2,140.7 lb)

Axle loading without load front

Min.: 2,256 kg
(4,973.6 lb)

Max.: 2,651 kg
(5,844.5 lb)

Axle loading without load rear

Min.: 2,328 kg
(5,132.4 lb)

Max.: 3,002 kg
(6,618.3 lb)

Track width front

950 mm, 985 mm
(37.4 in, 38.8 in)

Track width rear

970 mm
(38.2 in)

Height of mast when lowered

2,145 mm, 2,165 mm, 2,291 mm
(84.4 in, 85.2 in, 90.2 in)

Free lift

100 mm
(3.9 in)

Overall height with mast raised

4,325 mm, 4,345 mm, 4,355 mm
(170.3 in, 171.1 in, 171.5 in)

Height to top of overhead guard

2,240 mm
(88.2 in)

Seat height

1,130 mm
(44.5 in)

Tow couplig height

395 mm
(15.6 in)

Length to fork face

2,389 mm, 2,417 mm, 2,530 mm, 2,558 mm
(94.1 in, 95.2 in, 99.6 in, 100.7 in)

Fork carriage width

1,000 mm
(39.4 in)

Ground clearance under mast with load

105 mm, 115 mm
(4.1 in, 4.5 in)

Ground clearance at center of wheelbase with load

122 mm
(4.8 in)

Turning circle radius

1,920 mm, 2,064 mm
(75.6 in, 81.3 in)

Minimum distance between centres of rotation

160 mm
(6.3 in)

Travel speed

18 km/h, 20 km/h
(11.2 mph, 12.4 mph)

Lifting speed

Min.: 0.5 m/s
(1.64 ft/s)

Max.: 0.7 m/s
(2.297 ft/s)

Lowering speed

0.5 m/s, 0.6 m/s
(1.64 ft/s, 1.969 ft/s)

Rated drawbar pull

Min.: 8,950 N

Max.: 9,700 N

Gradeability

Min.: 12 %

Max.: 25 %

Rated output

8 kW
(10.9 hp)

Maximum operating pressure

185 bar
(2,683.2 psi)

Oil flow

30 l/min
(7.9 us gal/min)

Noise level

65 dB, 66 dB

Description

This range of electric counterbalance forklifts answers the need for high-powered performance in applications where diesel powered IC engine lift trucks and their emissions are not permissible. Designed to cope with intensive duties and tough conditions, you will find these electric counterbalance forklifts highly productive and, at the same time, a pleasure to drive, thanks to their agility, intelligence and comfort. Typical industry applications: Food and beverage manufacturing and wholesale Paper manufacturing and wholesale Foundries Chemicals, textiles and rubber Machinery and heavy equipment The specification of the Cat EP25-35A(C)N electric counterbalance forklift truck range includes many innovative features designed to give your drivers a more comfortable and pleasurable operating experience. They include the Cat Responsive Drive System (RDS), which has taken the idea of intelligent automatic adjustment of performance characteristics to a whole new level. This electric lift truck seems to ‘know’ how the driver wants it to behave at any moment. Meanwhile, its intelligent curve control reduces speed in a much more natural and comfortable way than any previous cornering technology. Another key advantage of this electric counterbalance truck over the competition’s materials handling equipment is the OmniTurn all-wheel steering system, which makes it much more manoeuvrable. If the driver needs an extra burst of acceleration or climbing torque, the lift truck’s PowerBurst feature automatically kicks in to maintain rapid motion. When driving in slippery environments, its electric differential locking gives added confidence.
