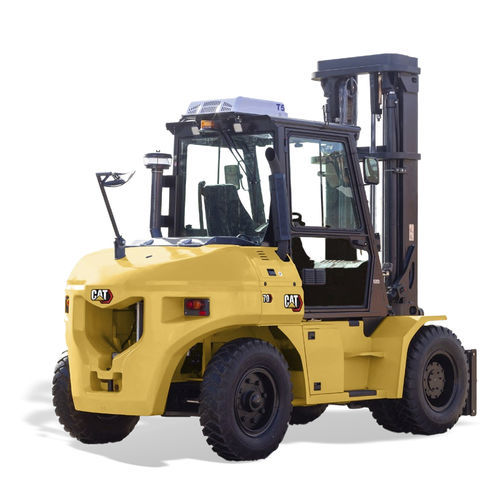

Counterbalanced forklift DP60-100N3
dieselride-onempty container

counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, industrial, empty container
Other characteristics
4-wheel, counterbalanced, high-speed
Carrying capacity

6,000 kg, 7,000 kg, 8,000 kg, 10,000 kg
(13,227.7 lb, 15,432.4 lb, 17,637 lb, 22,046.2 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

2,005 mm, 2,175 mm, 2,245 mm
(78.9 in, 85.6 in, 88.4 in)

Overall length

4,805 mm, 4,875 mm, 5,245 mm, 5,485 mm
(189.2 in, 191.9 in, 206.5 in, 215.9 in)

Load center distance

600 mm
(23.6 in)

Weight without load

8,670 kg, 9,540 kg, 11,510 kg, 12,910 kg
(19,114.1 lb, 21,032.1 lb, 25,375.2 lb, 28,461.7 lb)

Axle loading with maximum load front

13,030 kg, 14,640 kg, 17,360 kg, 20,660 kg
(28,726.2 lb, 32,275.7 lb, 38,272.2 lb, 45,547.5 lb)

Axle loading with maximum load rear

1,640 kg, 1,900 kg, 2,150 kg, 2,250 kg
(3,615.6 lb, 4,188.8 lb, 4,739.9 lb, 4,960.4 lb)

Axle loading without load front

3,860 kg, 3,910 kg, 5,140 kg, 5,980 kg
(8,509.8 lb, 8,620.1 lb, 11,331.8 lb, 13,183.6 lb)

Axle loading without load rear

4,810 kg, 5,630 kg, 6,370 kg, 6,930 kg
(10,604.2 lb, 12,412 lb, 14,043.4 lb, 15,278 lb)

Track width front

1,470 mm, 1,600 mm
(57.9 in, 63 in)

Track width rear

1,700 mm
(66.9 in)

Height of mast when lowered

2,500 mm, 2,800 mm, 2,850 mm
(98.4 in, 110.2 in, 112.2 in)

Free lift

205 mm, 215 mm
(8.1 in, 8.5 in)

Overall height with mast raised

4,330 mm, 4,420 mm
(170.5 in, 174 in)

Height to top of overhead guard

2,550 mm, 2,660 mm
(100.4 in, 104.7 in)

Seat height

1,470 mm, 1,570 mm
(57.9 in, 61.8 in)

Tow couplig height

520 mm, 590 mm, 600 mm
(20.5 in, 23.2 in, 23.6 in)

Length to fork face

3,585 mm, 3,655 mm, 4,025 mm, 4,265 mm
(141.1 in, 143.9 in, 158.5 in, 167.9 in)

Fork carriage width

1,845 mm, 2,015 mm, 2,208 mm
(72.6 in, 79.3 in, 86.9 in)

Ground clearance under mast with load

200 mm, 240 mm
(7.9 in, 9.4 in)

Ground clearance at center of wheelbase with load

225 mm, 290 mm
(8.9 in, 11.4 in)

Turning circle radius

3,400 mm, 3,460 mm, 3,710 mm, 3,950 mm
(133.9 in, 136.2 in, 146.1 in, 155.5 in)

Minimum distance between centres of rotation

1,255 mm, 1,290 mm, 1,475 mm
(49.4 in, 50.8 in, 58.1 in)

Travel speed

24 km/h, 25 km/h, 27 km/h, 28 km/h
(14.9 mph, 15.5 mph, 16.8 mph, 17.4 mph)

Lifting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.4 m/s
(1.312 ft/s)

Lowering speed

0.4 m/s, 0.5 m/s
(1.312 ft/s, 1.64 ft/s)

Rated drawbar pull

Max.: 63,700 N

Min.: 21,600 N

Gradeability

Max.: 28 %

Min.: 20 %

Rated output

81 kW
(110.1 hp)

Rated speed

1,500 rpm
(9,424.8 rad.min-1)

Cubic capacity

3,769 cm³
(127.4 US fl oz)

Maximum operating pressure

206 bar
(2,987.8 psi)

Noise level

86 dB

Description

Driven by one of the most powerful engines in its class, the DP60-100N3 boasts both strength and speed. The massive loads it can handle do not hamper its speed, making this one of the fastest and most efficient machines in the industry. Its 3.8L common rail diesel engine delivers high power with minimal vibration transmitted to the driver’s seat, due to the use of cushioning materials between its frame and engine. A variety of attachments are available, including different carriages and side shifters. The extremely rigid mast’s roller layout and narrow channels have been thoughtfully designed, along with the high-visibility overhead guard, to maximise forward and upward view. An optional cabin shelters drivers from extreme temperatures and wet conditions, without obscuring their vision. The optional adjustable armrest combines anatomical support with free movement and perfect hand positioning. It features spring-force-optimised fingertip hydraulic controls. Fast lift speeds, together with an automatic two-speed powershift transmission that gives controlled yet powerful acceleration, ensure maximum productivity. Typical applications include: Stevedoring Empty container handling Metal industries Lumber Concrete, stone, clay and glass Industrial machinery and equipment Distribution centres Brick and stone
