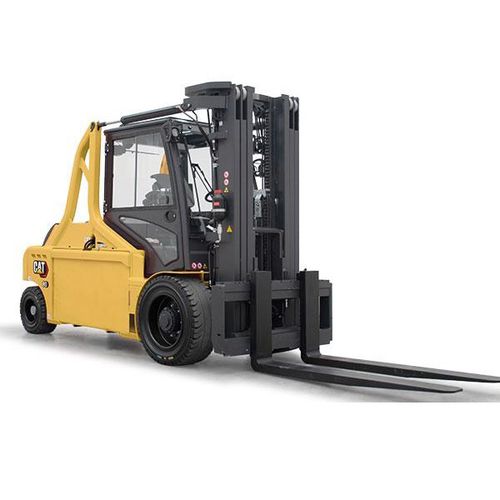

Counterbalanced forklift EP60-120N(H)
electricride-onhandling

Counterbalanced forklift - EP60-120N(H) - Cat Lift Trucks - electric / ride-on / handling
Counterbalanced forklift - EP60-120N(H) - Cat Lift Trucks - electric / ride-on / handling
Counterbalanced forklift - EP60-120N(H) - Cat Lift Trucks - electric / ride-on / handling - image - 2
Counterbalanced forklift - EP60-120N(H) - Cat Lift Trucks - electric / ride-on / handling - image - 3
Counterbalanced forklift - EP60-120N(H) - Cat Lift Trucks - electric / ride-on / handling - image - 4
Counterbalanced forklift - EP60-120N(H) - Cat Lift Trucks - electric / ride-on / handling - image - 5
Counterbalanced forklift - EP60-120N(H) - Cat Lift Trucks - electric / ride-on / handling - image - 6
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for the recycling industry, for warehouse
Other characteristics
counterbalanced, high-performance, for heavy loads
Carrying capacity

Min.: 6,000 kg
(13,227.7 lb)

Max.: 12,000 kg
(26,455.5 lb)

Lifting height

3,400 mm
(133.86 in)

Overall width

Min.: 1,660 mm
(65.4 in)

Max.: 2,140 mm
(84.3 in)

Overall length

Min.: 4,550 mm
(179.1 in)

Max.: 5,340 mm
(210.2 in)

Load center distance

600 mm, 900 mm
(23.6 in, 35.4 in)

Weight without load

Min.: 10,260 kg
(22,619.4 lb)

Max.: 16,105 kg
(35,505.4 lb)

Axle loading with maximum load front

Min.: 14,523 kg
(32,017.7 lb)

Max.: 22,678 kg
(49,996.4 lb)

Axle loading with maximum load rear

Min.: 1,425 kg
(3,141.6 lb)

Max.: 1,906 kg
(4,202 lb)

Axle loading without load front

Min.: 5,190 kg
(11,442 lb)

Max.: 8,840 kg
(19,488.9 lb)

Axle loading without load rear

Min.: 5,070 kg
(11,177.4 lb)

Max.: 7,265 kg
(16,016.6 lb)

Track width front

Min.: 1,305 mm
(51.4 in)

Max.: 1,565 mm
(61.6 in)

Track width rear

Min.: 1,215 mm
(47.8 in)

Max.: 1,227 mm
(48.3 in)

Height of mast when lowered

2,680 mm, 2,792 mm, 2,900 mm, 2,950 mm
(105.5 in, 109.9 in, 114.2 in, 116.1 in)

Free lift

100 mm
(3.9 in)

Overall height with mast raised

4,370 mm, 4,530 mm, 4,800 mm, 4,850 mm, 4,900 mm
(172 in, 178.3 in, 189 in, 190.9 in, 192.9 in)

Height to top of overhead guard

2,420 mm
(95.3 in)

Seat height

1,330 mm
(52.4 in)

Tow couplig height

465 mm
(18.3 in)

Length to fork face

Min.: 3,300 mm
(129.9 in)

Max.: 4,125 mm
(162.4 in)

Fork carriage width

1,300 mm, 1,500 mm, 1,800 mm, 2,000 mm
(51.2 in, 59.1 in, 70.9 in, 78.7 in)

Ground clearance under mast with load

180 mm
(7.1 in)

Ground clearance at center of wheelbase with load

165 mm
(6.5 in)

Minimum distance between centres of rotation

Min.: 2,650 mm
(104.3 in)

Max.: 3,705 mm
(145.9 in)

Travel speed

Min.: 14 km/h
(8.7 mph)

Max.: 20 km/h
(12.4 mph)

Lifting speed

Min.: 0.2 m/s
(0.656 ft/s)

Max.: 0.4 m/s
(1.312 ft/s)

Lowering speed

Min.: 0.3 m/s
(0.984 ft/s)

Max.: 0.8 m/s
(2.625 ft/s)

Rated drawbar pull

Min.: 5,000 N

Max.: 7,500 N

Gradeability

Min.: 5 %

Max.: 23.7 %

Rated output

15 kW
(20.4 hp)

Maximum operating pressure

200 bar
(2,900.8 psi)

Description

The EP60-120N(H) heavy electric forklifts are a highly profitable investment that will save you money and boost your productivity. Robust engineering, for demanding roles and harsh conditions, combines with smooth, quiet comfort that optimises driver performance. Our range of 15 large electric counterbalance trucks covers 7 capacities between 6.0 and 12.0 tonnes. To handle the heaviest and most intensive duties, we offer high-performance (NH) as well as standard (N) models. In addition to an impressive standard specification, we have many optional features to meet different application needs and preferences. Typical applications of our heavy electric forklift trucks Timber Paper Recycling And many more With large-capacity batteries and efficient electrical systems, our heavy electric counterbalance models use energy economically and give long runtimes. Their 96V batteries are divided into two parts. These can be easily exchanged, laterally, by one person with a power pallet or another forklift. We reduce downtime and labour costs through quick engineer access features and diagnostic aids, which speed up servicing. We also build our electric forklifts robustly and seal and protect their key components. This cuts maintenance needs and expense even further, while extending truck lifespans and maintaining high residual values. You can depend on our advanced electric motor technology to generate all the power and speed you need. Better still, our heavy electric forklifts deliver their high torque, acceleration and lifting strength with precise control. For the driver, it means every movement of the truck, mast and forks is rapid, accurate and smooth.
