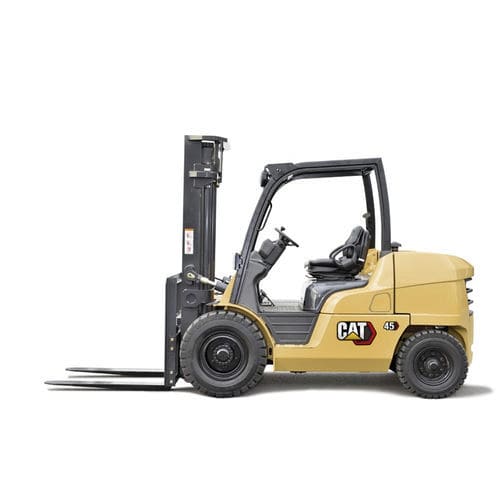

Counterbalanced forklift DP40-55(C)N3
dieselride-onfor the construction industry

Counterbalanced forklift - DP40-55(C)N3 - Cat Lift Trucks - diesel / ride-on / for the construction industry
Counterbalanced forklift - DP40-55(C)N3 - Cat Lift Trucks - diesel / ride-on / for the construction industry
Counterbalanced forklift - DP40-55(C)N3 - Cat Lift Trucks - diesel / ride-on / for the construction industry - image - 2
Counterbalanced forklift - DP40-55(C)N3 - Cat Lift Trucks - diesel / ride-on / for the construction industry - image - 3
Counterbalanced forklift - DP40-55(C)N3 - Cat Lift Trucks - diesel / ride-on / for the construction industry - image - 4
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, for the construction industry
Other characteristics
4-wheel, counterbalanced, compact, heavy-duty, low-noise
Carrying capacity

4,000 kg, 4,500 kg, 5,000 kg, 5,500 kg
(8,818.5 lb, 9,920.8 lb, 11,023.1 lb, 12,125.4 lb)

Lifting height

3,300 mm
(129.92 in)

Overall width

1,415 mm, 1,460 mm, 1,780 mm
(55.7 in, 57.5 in, 70.1 in)

Overall length

Max.: 4,580 mm
(180.3 in)

Min.: 4,220 mm
(166.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Max.: 7,640 kg
(16,843.3 lb)

Min.: 5,920 kg
(13,051.4 lb)

Axle loading with maximum load front

Max.: 11,740 kg
(25,882.3 lb)

Min.: 8,960 kg
(19,753.4 lb)

Axle loading with maximum load rear

Max.: 1,400 kg
(3,086.5 lb)

Min.: 960 kg
(2,116.4 lb)

Axle loading without load front

Max.: 3,220 kg
(7,098.9 lb)

Min.: 2,630 kg
(5,798.2 lb)

Axle loading without load rear

Max.: 4,470 kg
(9,854.7 lb)

Min.: 3,290 kg
(7,253.2 lb)

Track width front

1,175 mm
(46.3 in)

Track width rear

1,180 mm
(46.5 in)

Height of mast when lowered

2,320 mm, 2,400 mm
(91.3 in, 94.5 in)

Free lift

150 mm, 160 mm
(5.9 in, 6.3 in)

Overall height with mast raised

4,430 mm, 4,580 mm
(174.4 in, 180.3 in)

Height to top of overhead guard

2,295 mm
(90.4 in)

Seat height

1,082 mm
(42.6 in)

Tow couplig height

395 mm
(15.6 in)

Length to fork face

Max.: 3,360 mm
(132.3 in)

Min.: 3,000 mm
(118.1 in)

Fork carriage width

1,190 mm
(46.9 in)

Ground clearance under mast with load

150 mm
(5.9 in)

Ground clearance at center of wheelbase with load

227 mm
(8.9 in)

Turning circle radius

Max.: 2,940 mm
(115.7 in)

Min.: 2,580 mm
(101.6 in)

Minimum distance between centres of rotation

Max.: 971 mm
(38.2 in)

Min.: 836 mm
(32.9 in)

Travel speed

Max.: 22.5 km/h
(14 mph)

Min.: 20.5 km/h
(12.7 mph)

Lifting speed

Max.: 0.7 m/s
(2.297 ft/s)

Min.: 0.5 m/s
(1.64 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

Max.: 25,800 N

Min.: 18,200 N

Gradeability

Max.: 27.3 %

Min.: 19.3 %

Rated output

54 kW
(73.4 hp)

Rated speed

1,800 rpm
(11,309.7 rad.min-1)

Cubic capacity

3,330 cm³
(112.6 US fl oz)

Maximum operating pressure

191 bar
(2,770.2 psi)

Oil flow

80 l/min
(21.1 us gal/min)

Noise level

78.5 dB

Description

These larger engine 4 to 5.5 tonnes powered forklift models are designed for heavy duty applications and are the natural choice for use in ports, construction, freight, and metal and brick operations. With exceptional endurance and power they effortlessly handle the most difficult and heavy loads even when operating at full capacity. In these 4 to 5.5 tonnes powered forklifts, the tough six-cylinder engine’s precombustion chamber allows each cylinder to work at peak efficiency regardless of load and speed and contributes to the truck’s exceptionally low noise, vibrations, emissions and economy. The rotary fuel pump allows easy maintenance while protecting the engine. The compact, smooth lines of each model ensure that they are easy to manoeuvre in confined spaces whilst ensuring good visibility. The excellence of the range is further boosted by a wide array of options that enable you to fine tune each truck to your work requirements. Specially positioned air intake system lengthens the life of air intake filter cartridges. LCD multifunctional display with indicators providing all safety functions, allows for rapid trouble shooting. Long service interval. Durable transmission system giving smooth and accurate gear changes and low noise levels. Highly regarded, market proven industrial diesel engines give excellent performance. LED front and rear combination lights. Engine hour’s timer keeps track of hours worked helping fleetmanagers to schedule regular maintenance.
