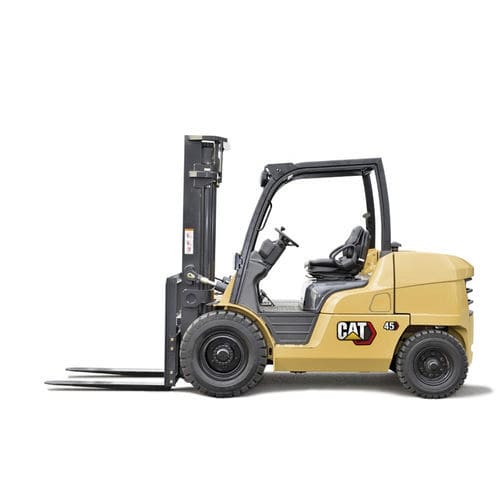

Counterbalanced forklift GP40-55(C)N3
LPGride-onhandling

Counterbalanced forklift - GP40-55(C)N3 - Cat Lift Trucks - LPG / ride-on / handling
Counterbalanced forklift - GP40-55(C)N3 - Cat Lift Trucks - LPG / ride-on / handling
Counterbalanced forklift - GP40-55(C)N3 - Cat Lift Trucks - LPG / ride-on / handling - image - 2
Counterbalanced forklift - GP40-55(C)N3 - Cat Lift Trucks - LPG / ride-on / handling - image - 3
Add to favorites
Compare this product


Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling, for the construction industry
Other characteristics
4-wheel, counterbalanced, compact, heavy-duty, high-performance, low-noise
Carrying capacity

4,000 kg, 4,500 kg, 5,000 kg, 5,500 kg
(8,818.5 lb, 9,920.8 lb, 11,023.1 lb, 12,125.4 lb)

Lifting height

3,300 mm
(129.92 in)

Overall width

Max.: 1,780 mm
(70.1 in)

Min.: 1,415 mm
(55.7 in)

Overall length

Max.: 4,580 mm
(180.3 in)

Min.: 4,220 mm
(166.1 in)

Load center distance

500 mm, 600 mm
(19.7 in, 23.6 in)

Weight without load

Max.: 7,570 kg
(16,689 lb)

Min.: 5,860 kg
(12,919.1 lb)

Axle loading with maximum load front

Max.: 11,710 kg
(25,816.1 lb)

Min.: 8,940 kg
(19,709.3 lb)

Axle loading with maximum load rear

Max.: 1,360 kg
(2,998.3 lb)

Min.: 920 kg
(2,028.3 lb)

Axle loading without load front

Max.: 3,190 kg
(7,032.7 lb)

Min.: 2,610 kg
(5,754.1 lb)

Axle loading without load rear

Max.: 4,440 kg
(9,788.5 lb)

Min.: 3,250 kg
(7,165 lb)

Track width front

1,175 mm
(46.3 in)

Track width rear

1,180 mm
(46.5 in)

Height of mast when lowered

2,320 mm, 2,400 mm
(91.3 in, 94.5 in)

Free lift

150 mm, 160 mm
(5.9 in, 6.3 in)

Overall height with mast raised

4,430 mm, 4,580 mm
(174.4 in, 180.3 in)

Height to top of overhead guard

2,295 mm
(90.4 in)

Seat height

1,082 mm
(42.6 in)

Tow couplig height

395 mm
(15.6 in)

Length to fork face

Max.: 3,360 mm
(132.3 in)

Min.: 3,000 mm
(118.1 in)

Fork carriage width

1,190 mm
(46.9 in)

Ground clearance under mast with load

150 mm
(5.9 in)

Ground clearance at center of wheelbase with load

227 mm
(8.9 in)

Turning circle radius

Max.: 2,940 mm
(115.7 in)

Min.: 2,580 mm
(101.6 in)

Minimum distance between centres of rotation

836 mm, 903 mm, 971 mm
(32.9 in, 35.6 in, 38.2 in)

Travel speed

Max.: 23.5 km/h
(14.6 mph)

Min.: 22 km/h
(13.7 mph)

Lifting speed

Max.: 0.7 m/s
(2.297 ft/s)

Min.: 0.5 m/s
(1.64 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

Max.: 28,700 N

Min.: 19,000 N

Gradeability

Max.: 30.8 %

Min.: 21.8 %

Rated output

54 kW
(73.4 hp)

Rated speed

2,450 rpm
(15,393.8 rad.min-1)

Cubic capacity

4,450 cm³
(150.5 US fl oz)

Maximum operating pressure

191 bar
(2,770.2 psi)

Oil flow

80 l/min
(21.1 us gal/min)

Noise level

78.2 dB

Description

These larger LPG forklift truck models are designed for heavy duty applications and are the natural choice for use in ports, construction, freight, and metal and brick operations. With exceptional endurance and power they effortlessly handle the most difficult and heavy loads even when operating at full capacity. The GP40-55(C)N3 LPG forklift truck models are equipped with a GCT GK45 LPG engine with standard catalytic converter that delivers good performance, excellent fuel economy and low emissions, as well as low noise and vibration levels. The compact, smooth lines of each model ensure that they are easy to manoeuvre in confined spaces whilst ensuring good visibility. The excellence of the range is further boosted by a wide array of options that enable you to fine tune each LPG forklift truck to your work requirements. Specially positioned air intake system lengthens the life of air intake filter cartridges. LCD multifunctional display with indicators providing all safety functions, allows for rapid trouble shooting. Long service interval. Durable transmission system giving smooth and accurate gear changes and low noise levels. Highly regarded, market proven industrial LPG engine give excellent performance. LED front and rear combination lights. Engine hour’s timer keeps track of hours worked helping fleet managers to schedule regular maintenance. Compact design increases maneuverability in space restricted areas. Cooling system designed to reduce blockages utilising pusher type radiator airflow. Wide variety of mast types and lifting heights allows the truck to be specified to your needs.
