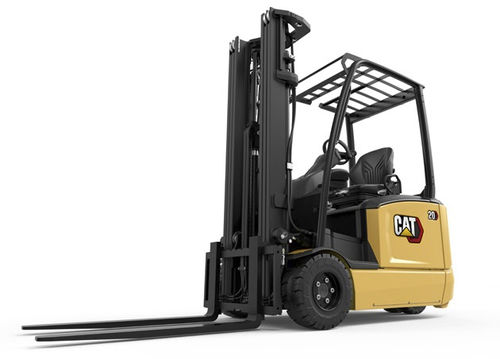

Counterbalanced forklift EP14-20(C)N2T
electricride-onhandling

Counterbalanced forklift - EP14-20(C)N2T - Cat Lift Trucks - electric / ride-on / handling
Counterbalanced forklift - EP14-20(C)N2T - Cat Lift Trucks - electric / ride-on / handling
Counterbalanced forklift - EP14-20(C)N2T - Cat Lift Trucks - electric / ride-on / handling - image - 2
Counterbalanced forklift - EP14-20(C)N2T - Cat Lift Trucks - electric / ride-on / handling - image - 3
Counterbalanced forklift - EP14-20(C)N2T - Cat Lift Trucks - electric / ride-on / handling - image - 4
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for the food industry, for the fishing industry, for the beverage industry, narrow-aisle
Other characteristics
counterbalanced, compact, for harsh environments
Carrying capacity

1,400 kg, 1,600 kg, 1,800 kg, 2,000 kg
(3,086.5 lb, 3,527.4 lb, 3,968.3 lb, 4,409.2 lb)

Lifting height

3,290 mm
(129.53 in)

Overall width

1,090 mm, 1,140 mm
(42.9 in, 44.9 in)

Overall length

2,996 mm, 3,104 mm, 3,119 mm
(118 in, 122.2 in, 122.8 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Max.: 3,342 kg
(7,367.8 lb)

Min.: 2,790 kg
(6,150.9 lb)

Axle loading with maximum load front

Max.: 4,711 kg
(10,386 lb)

Min.: 3,688 kg
(8,130.6 lb)

Axle loading with maximum load rear

Max.: 631 kg
(1,391.1 lb)

Min.: 502 kg
(1,106.7 lb)

Axle loading without load front

Max.: 1,509 kg
(3,326.8 lb)

Min.: 1,393 kg
(3,071 lb)

Axle loading without load rear

Max.: 1,833 kg
(4,041.1 lb)

Min.: 1,396 kg
(3,077.7 lb)

Track width front

930 mm, 938 mm
(36.6 in, 36.9 in)

Track width rear

174 mm
(6.9 in)

Height of mast when lowered

2,125 mm
(83.7 in)

Free lift

80 mm
(3.1 in)

Overall height with mast raised

4,335 mm
(170.7 in)

Height to top of overhead guard

2,050 mm
(80.7 in)

Seat height

1,035 mm
(40.7 in)

Tow couplig height

540 mm
(21.3 in)

Length to fork face

1,846 mm, 1,954 mm, 1,969 mm
(72.7 in, 76.9 in, 77.5 in)

Fork carriage width

920 mm
(36.2 in)

Ground clearance under mast with load

95 mm
(3.7 in)

Ground clearance at center of wheelbase with load

95 mm
(3.7 in)

Turning circle radius

1,502 mm, 1,610 mm
(59.1 in, 63.4 in)

Minimum distance between centres of rotation

0 mm
(0 in)

Travel speed

16 km/h
(9.9 mph)

Lifting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.4 m/s
(1.312 ft/s)

Lowering speed

0.6 m/s
(1.969 ft/s)

Rated drawbar pull

Max.: 5,200 N

Min.: 4,700 N

Gradeability

Max.: 26 %

Min.: 13 %

Rated output

5.5 kW
(7.5 hp)

Maximum operating pressure

210 bar
(3,045.8 psi)

Oil flow

30 l/min
(7.9 us gal/min)

Noise level

65 dB

Description

With their compact design, amazing manoeuvrability and intelligent control systems, these small electric forklift are the automatic choice when space is tight. Ideal for efficient handling in containers, lorries, drive-in racking and other cramped, fast-paced environments, the small electric forklift’s behaviour rapidly adapts to changes in drivers’ wishes and needs. They are also built to stand up to harsh, wet, dirty or dusty conditions. Typical applications: Food and beverage manufacturing and wholesale Fishing Industry Chemicals, textiles & rubber General & refrigerated warehousing and storage Machinery & heavy equipment Electric equipment & components Thanks to the latest electronic controllers and sensors, software and multiple algorithms, driving and load handling these small electric forklifts is easier, steadier, safer and more comfortable than ever. Drivers feel this small electric forklift range is totally in tune with them, so they are happy, confident and highly productive. Central to this driving experience is the Cat Responsive Drive System 2 (RDS2). Monitoring and instantly reacting to changes in the speed of pedal movement, RDS2 constantly adjusts performance parameters so all actions are smoothly controlled – including starts and stops. Another system continuously modifies steering response according to travel speed. When travelling fast, this range of small electric forklifts avoids the need for constant correction by the driver. When manoeuvring slowly, turning becomes instant and effortless. Advanced curve control enables drivers to achieve the fastest safe cornering speed in any situation.
