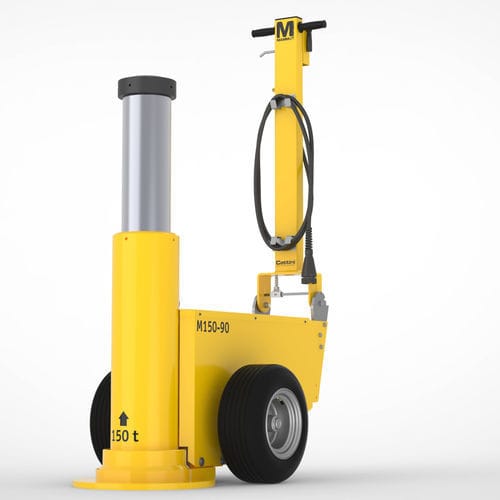

Wheeled jack M150/90pneumatic150 tonsmining and quarrying
Add to favorites
Compare this product
Characteristics
- Type
- wheeled
- Technology
- pneumatic
- Maximum load
- 150 tons
- Applications
- mining and quarrying
- Other characteristics
- for heavy loads
- Height
901 mm
(35 in)- Stroke
554 mm
(21.81 in)- Pressure
Max.: 12 bar
(174.05 psi)Min.: 10 bar
(145.04 psi)- Weight
389 kg
(857.6 lb)
Description
Capacity:
150 t
165.3 ton
Net weight:
389 Kg
858 lb
Working air pressure:
10-12 bar
145-174 psi
Air consumption:
600 nl/min
Stroke:
554 mm
21.8 in
Min. height:
901 mm
35.5 in
Number of pistons:
1
Pistons stroke:
554 mm
21.8 in
