Application:

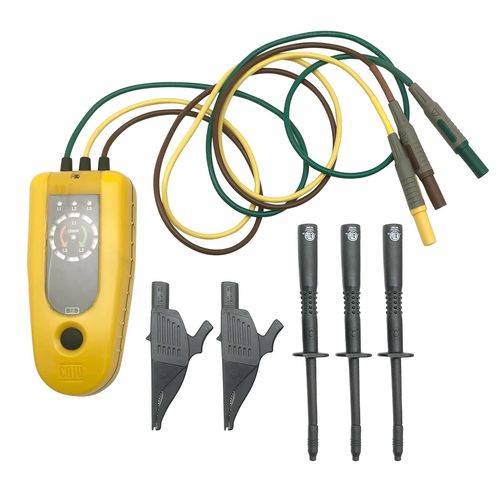

Phase rotation indicator working from 25 V.
Phase rotation is provided by means of successive lighting diodes symbolising the rotation.
Works on generating unit.
Features:
3 wire operation with Ø4 mm IP2X probes equipped with contact strips.
The diodes indicate :
clockwise rotation: mark with green arrow OK,
Anti-clockwise rotation indicated by the red arrow "INVERSE"
Default: the DEFECT diode (DEFAUT) indicates an error of connection such as the cut or absence of phase or the presence of neutral between phases.
Voltage range: 25 V - 440 V AC.
Protection level: IP65 & IK07.
CAT IV - 600 V AC
