CNC lathe ID-MAX 500
horizontal2-axisinclined bed

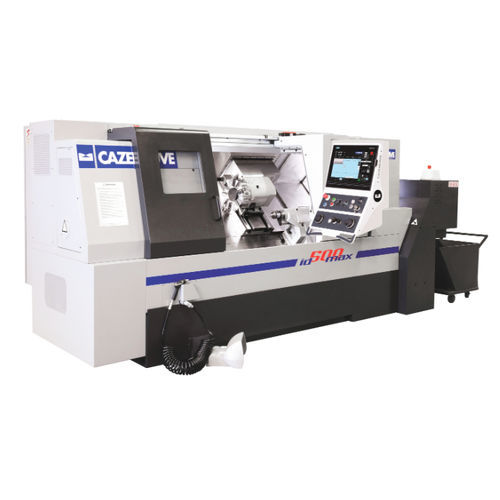

CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed
CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed
CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 2
CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 3
CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 4
CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 5
CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 6
CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 7
CNC lathe - ID-MAX 500 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 8
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Structure
inclined bed
Spindle mount
A2-6
Number of tool stations
12 tools
Performance
precision, high-productivity
Other characteristics
compact, teach-in
Associated function
milling
Diameter

505 mm
(19.88 in)

Spindle speed

4,500 rpm
(28,274.334 rad.min-1)

Axe X

220 mm
(9 in)

Axe Z

1,080 mm
(43 in)

Nominal power

11 kW, 22 kW
(15 hp, 29.9 hp)

Overall lenght

3,500 mm, 4,300 mm
(138 in, 169 in)

Overall width

1,810 mm
(71 in)

Overall height

1,700 mm
(67 in)

Weight

3,600 kg, 5,200 kg
(7,937 lb, 11,464 lb)

Description

This lathe with an inclined bed is designed for making unit parts or runs. Removal of swarf is optimised thanks to the built-in conveyor in this compact machine. Equipped with an automatic turret, changing tools is fast and makes it possible to increase productivity as well as the machining of complex parts that require several tools. IDMAX 500 is differentiated by its prismatic guideways, guaranteeing robustness and precision over time. Very compact despite its generous capacities, this lathe will easily find a place in your workshops.
